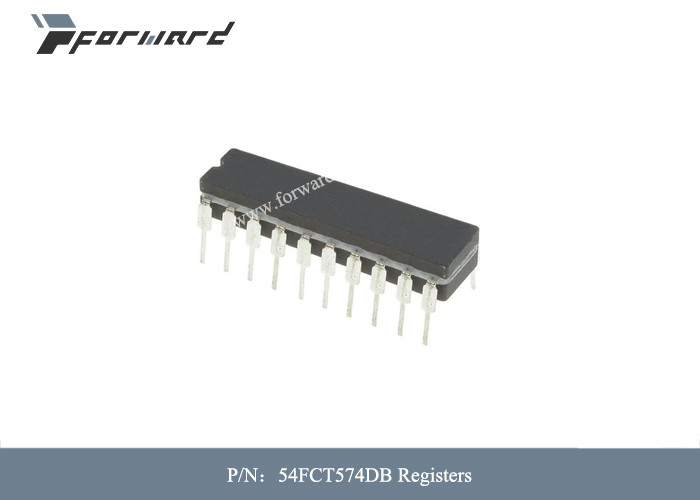

Aviation Parts 54FCT574DB Registers Current Output High, Low 15mA, 48mA
| Model Number | 54FCT574DB |
|---|---|
| Minimum Order Quantity | 1 pcs |
| Price | Negotiable |
| Packaging Details | boxes |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mfr | Renesas Electronics America Inc | Package | Tube |
|---|---|---|---|
| Product Status | Last Time Buy | Function | Standard |
| Output Type | Tri-State | Max Propagation Delay @ V, Max CL | 7.2ns @ 50pF |
| Trigger Type | Positive Edge | Current - Output High, Low | 15mA, 48mA |
Product Description
Aviation Parts 54FCT574DB Registers Current Output High, Low 15mA, 48mA
Descriptions of Aviation Parts:
The FCT574T is an 8-bit register built using an advanced dual metal CMOS technology. These registers consist of eight D-type flip-flops with a buffered common clock and buffered 3-state output control. When the output enable (OE) input is low, the eight outputs are enabled. When the OE input is high, the outputs are in the high-impedance state. Input data meeting the set-up and hold time requirements of the D inputs is transferred to the Q outputs on the low-to-high transition of the clock input.
Features of Aviation Parts:
• Std., A, and C grades
• Low input and output leakage ≤1µA (max.)
• CMOS power levels
• True TTL input and output compatibility:
– VOH = 3.3V (typ.)
– VOL = 0.3V (typ.)
• High Drive outputs (-15mA IOH, 48mA IOL)
• Meets or exceeds JEDEC standard 18 specifications
• Military product compliant to MIL-STD-883, Class B and DESC
listed (dual marked)
• Power off disable outputs permit "live insertion"
• Available in the following packages:
– Industrial: SOIC, QSOP
– Military: CERDIP, LCC
Specifications of Aviation Parts:
| TYPE | DESCRIPTION |
| Category |
Integrated Circuits (ICs) Logic Flip Flops |
| Mfr | Renesas Electronics America Inc |
| Series | - |
| Package | Tube |
| Product Status | Last Time Buy |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Max Propagation Delay @ V, Max CL | 7.2ns @ 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 15mA, 48mA |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 1 mA |
| Input Capacitance | 10 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | 20-CDIP |
| Package / Case | 20-CDIP (0.300", 7.62mm) |
| Base Product Number | 54FCT574 |
