Aviation Parts 1N4148-1 Diodes Peak Reverse Voltage 75 V Max Surge Current 2 A

Product Details

Model Number: 1N4148-1

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Mfr:
Microchip
Product:
Switching Diodes
Peak Reverse Voltage:
75 V
Max Surge Current:
2 A
If - Forward Current:
200 MA
Configuration:
Single
Recovery Time:
20 Ns
Vf - Forward Voltage:
1.2 V
Mfr:
Microchip
Product:
Switching Diodes
Peak Reverse Voltage:
75 V
Max Surge Current:
2 A
If - Forward Current:
200 MA
Configuration:
Single
Recovery Time:
20 Ns
Vf - Forward Voltage:
1.2 V

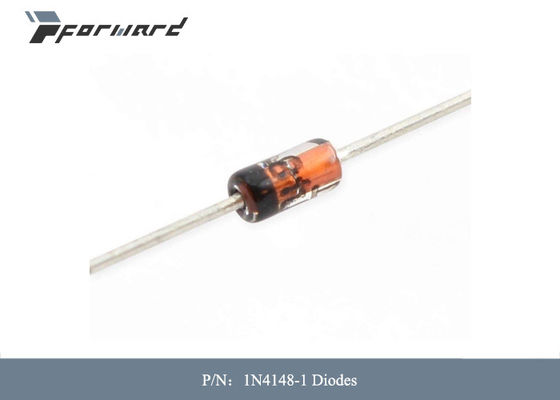

Aviation Parts 1N4148-1 Diodes Peak Reverse Voltage 75 V Max Surge Current 2 A

             Aviation Parts 1N4148-1 Diodes Peak Reverse Voltage 75 V Max Surge Current 2 A





Descriptions of Aviation Parts:


This popular 1N4148-1 JEDEC registered switching/signal diode features internal metallurgical bonded construction for military grade products per MIL-PRF-19500/116. This small low capacitance diode, with very fast switching speeds, is hermetically sealed and bonded into a double-plug DO-35 package. It may be used in a variety of very high speed applications including switchers, detectors, transient OR'ing, logic arrays, blocking, as well as low-capacitance steering diodes, etc. Microsemi also offers a variety of other switching/signal diodes.


Features of Aviation Parts:



• Popular JEDEC registered 1N4148 number.

• Hermetically sealed glass construction.

• Metallurgically bonded.

• Double plug construction.

• Very low capacitance.

• Very fast switching speeds with minimal reverse recovery times.

• JAN, JANTX, and JANTXV qualifications are available per MIL-PRF-19500/116.

• MSP screening is also available in reference to MIL-PRF-19500 (JANS).

• RoHS compliant version available (commercial grade only).


Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Microchip
Product Category: Diodes - General Purpose, Power, Switching
RoHS: N
Product: Switching Diodes
Mounting Style: Through Hole
Package / Case: DO-35-2
Peak Reverse Voltage: 75 V
Max Surge Current: 2 A
If - Forward Current: 200 mA
Configuration: Single
Recovery Time: 20 ns
Vf - Forward Voltage: 1.2 V
Ir - Reverse Current: 0.5 uA
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 175 C
Packaging: Bulk
Brand: Microchip Technology
Product Type: Diodes - General Purpose, Power, Switching
Factory Pack Quantity: 1
Subcategory: Diodes & Rectifiers
Unit Weight: 0.004833 oz
