Home > products > Aviation Parts > Aviation Parts EPM7256EGI192-20 FPGA Voltage Supply - Internal 4.5V ~ 5.5V

Aviation Parts EPM7256EGI192-20 FPGA Voltage Supply - Internal 4.5V ~ 5.5V

Product Details

Model Number: EPM7256EGI192-20 FPGA

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Mfr:
Intel
Series:
MAX® 7000
Package:
Tray
Voltage Supply - Internal:
4.5V ~ 5.5V
Number Of Macrocells:
256
Number Of Gates:
5000
Operating Temperature:
-40°C ~ 85°C(TA)
Mounting Type:
Surface Mount
Mfr:
Intel
Series:
MAX® 7000
Package:
Tray
Voltage Supply - Internal:
4.5V ~ 5.5V
Number Of Macrocells:
256
Number Of Gates:
5000
Operating Temperature:
-40°C ~ 85°C(TA)
Mounting Type:
Surface Mount

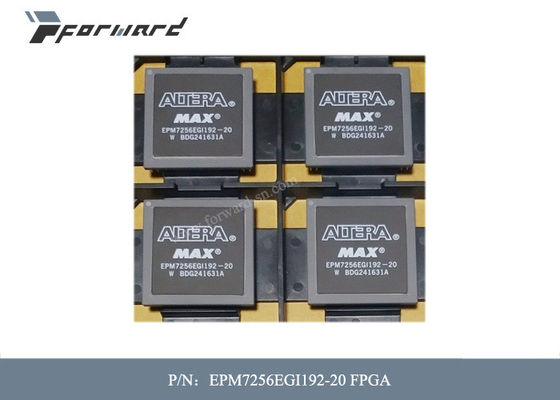

Aviation Parts EPM7256EGI192-20 FPGA Voltage Supply - Internal 4.5V ~ 5.5V

             Aviation Parts EPM7256EGI192-20 FPGA Voltage Supply - Internal 4.5V ~ 5.5V







Descriptions of Aviation Parts:


The MAX 7000 family of high-density, high-performance PLDs is based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROM-based MAX 7000 family provides 600 to 5,000 usable gates, ISP, pin-to-pin delays as fast as 5 ns, and counter speeds of up to 175.4 MHz. MAX 7000S devices in the -5, -6, -7, and -10 speed grades as well as MAX 7000 and MAX 7000E devices in -5, -6, -7, -10P, and -12P speed grades comply with the PCI Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2. See Table 3 for available speed grades.


Features of Aviation Parts:





■ High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAX® architecture

■ 5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface available in MAX 7000S devices

– ISP circuitry compatible with IEEE Std. 1532

■ Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices

■ Built-in JTAG boundary-scan test (BST) circuitry in MAX7000S devices with 128 or more macrocells

■ Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2)

■ 5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect)

■ PCI-compliant devices available




Specifications of Aviation Parts:



TYPE DESCRIPTION
Category

Integrated Circuits (ICs)

Embedded

CPLDs (Complex Programmable Logic Devices)

Mfr Intel
Series MAX® 7000
Package Tray
Product Status Obsolete
Digi-Key Programmable Not Verified
Programmable Type EE PLD
Delay Time tpd(1) Max 20 ns
Voltage Supply - Internal 4.5V ~ 5.5V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of Gates 5000
Number of I/O 164
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 192-BPGA
Supplier Device Package 192-PGA (44.7x44.7)
Base Product Number EPM7256
