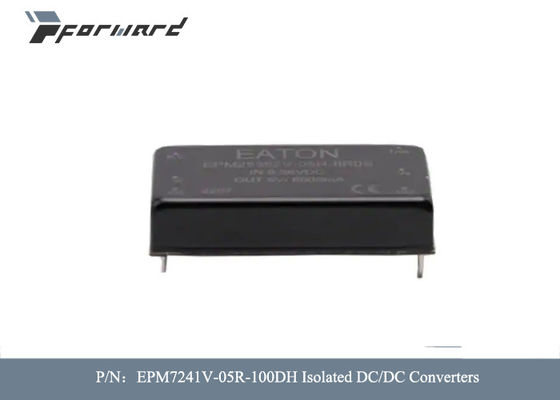

Aviation Parts EPM7241V-05R-100DH Isolated DC/DC Converters Input Voltage 24 VDC
| Model Number | EPM7241V-05R-100DH |
|---|---|
| Minimum Order Quantity | 1 pcs |
| Price | Negotiable |
| Packaging Details | boxes |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Mfr | Eaton | Length | 19.65 Mm |
|---|---|---|---|
| Width | 7.06 Mm | Height | 10.21 Mm |
| Maximum Operating Temperature | + 100 C | Minimum Operating Temperature | - 40 C |
| Mounting Style | SMD/SMT | Output Voltage-Channel | 5 V |
| Highlight | 24 VDC Aviation Parts EPM7241V-05R-100DH,Aviation Parts EPM7241V-05R-100DH |
||
Product Description
Aviation Parts EPM7241V-05R-100DH Isolated DC/DC Converters Input Voltage 24 VDC
Descriptions of Aviation Parts:
Coiltonics / Eaton EPM7-1V 1W Isolated DC-DC Converters offer a 4kVDC isolation voltage, efficiency up to 82%, and input voltages of 5VDC, 12VDC, and 24VDC. These converters feature both single- and dual-output options and provide the ideal balance between performance and design flexibility compared to existing linear regulators and DC-DC converters. EPM7-1V series converters come in a SIP7 package and have a high operating temperature range of -40°C to +100°C. Coiltonics / Eaton EPM7-1V 1W Isolated DC-DC Converters are ideal for distributed power architectures, renewable energy products, data processing, power supplies, and LAN / WAN applications.
Features of Aviation Parts:
• 1 Watt isolated DC-DC converter
• Input voltage: 5 Vdc, 12 Vdc, and 24 Vdc
• Efficiency up to 82%
• Isolation voltage: 4 kVdc
• SIP7 (4 and 5 pin) package
• Operating ambient temperature from -40 °C to +100 °C
• No minimum load required
• IEC62368-1/ EN55032&35 certified
Specifications of Aviation Parts:
| Description | Product Attribute |
| Manufacturer | Eaton |
| Package / Case | 19.65 mm x 10.21 mm x 7.06 mm |
| Length | 19.65 mm |
| Width | 7.06 mm |
| Height | 10.21 mm |
| Application | Computing / Telecom |
| Category | Power |
| Input Voltage | 24 VDC |
| Isolation Voltage | 4 kV |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 40 C |
| Mounting Style | SMD/SMT |
| Number of Outputs | 2 Output |
| Output Current-Channel 1 | 100 mA |
| Output Power | 1 W |
| Output Voltage-Channel 1 | 5 V |
| Packaging | Bulk |
| Product | Isolated |
| Product Type | Isolated DC-DC Converters |
| Series | EPM7xx1V |
