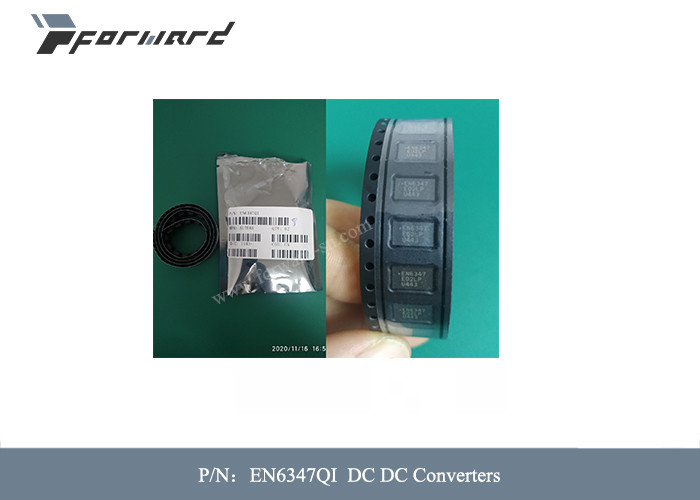

Aviation Parts EN6347QI DC-DC Converters Operating Temperature -40°C ~ 85°C

Product Details

Model Number: EN6347QI

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Mfr:
Intel
Series:
Enpirion®
Voltage - Input (Min):
2.5V
Voltage - Input (Max):
6.6V
Voltage - Output 1:
0.6 ~ 6.24V
Current - Output (Max):
4A
Efficiency:
95%
Mounting Type:
Surface Mount
Size / Dimension:
0.28" L X 0.16" W X 0.07" H (7.0mm X 4.0mm X 1.9mm)
Mfr:
Intel
Series:
Enpirion®
Voltage - Input (Min):
2.5V
Voltage - Input (Max):
6.6V
Voltage - Output 1:
0.6 ~ 6.24V
Current - Output (Max):
4A
Efficiency:
95%
Mounting Type:
Surface Mount
Size / Dimension:
0.28" L X 0.16" W X 0.07" H (7.0mm X 4.0mm X 1.9mm)
Aviation Parts EN6347QI DC-DC Converters Operating Temperature -40°C ~ 85°C

   Aviation Parts EN6347QI DC-DC Converters Operating Temperature -40°C ~ 85°C





Descriptions of Aviation Parts:



The EN6347QI is an Intel® Enpirion® Power System on a Chip (PowerSoC) DC-DC converter. It integrates the inductor, MOSFET switches, small-signal circuits and compensation in an advanced 4mm x 7mm x 1.85mm 38-pin QFN package.

The EN6347QI is specifically designed to meet the precise voltage and fast transient requirements of present and future high-performance, low-power processor, DSP, FPGA, memory boards and system level applications in distributed power architectures. The device’s advanced circuit techniques, high switching frequency, and proprietary integrated inductor technology deliver high-quality, ultra compact, non-isolated DC-DC conversion.

Intel Enpirion Power Solutions significantly help in system design and productivity by offering greatly simplified board design, layout and manufacturing requirements. In addition, a reduction in the number of components required for the complete power solution helps to enable an overall system cost saving.

All Enpirion products are RoHS compliant and leadfree manufacturing environment compatible.



Features of Aviation Parts:





• Integrated Inductor, MOSFETs, Controller

• 1.5% VOUT Accuracy (Over Load and Temperature)

• Up to 4A Continuous Operating Current

• 3 MHz Operating Frequency with Ext Clock Sync

• High Efficiency (Up to 95%)

• Frequency Synchronization to External Clock

• Input Voltage Range (2.5V to 6.6V)

• Programmable Light Load Mode

• Output Enable Pin and Power OK

• Programmable Soft-Start

• Thermal Shutdown, Over-Current, Short Circuit, and Under-Voltage Protection

• RoHS Compliant, MSL Level 3, 260°C Reflow





Specifications of Aviation Parts:



TYPE DESCRIPTION
Category

Power Supplies - Board Mount

DC DC Converters

Mfr Intel
Series Enpirion®
Package

Tape & Reel (TR)

Cut Tape (CT)

Digi-Reel®

Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.5V
Voltage - Input (Max) 6.6V
Voltage - Output 1 0.6 ~ 6.24V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 4A
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, SCP, UVLO
Operating Temperature -40°C ~ 85°C
Efficiency 95%
Mounting Type Surface Mount
Package / Case 38-FQFN Exposed Pad
Size / Dimension 0.28" L x 0.16" W x 0.07" H (7.0mm x 4.0mm x 1.9mm)
Supplier Device Package 38-QFN (7x4)
Control Features Enable, Active High
Base Product Number EN6347
