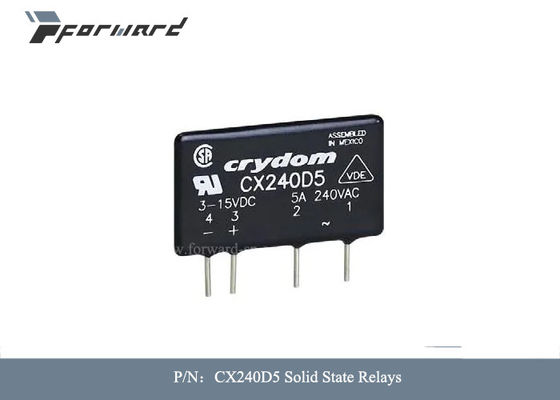

Aviation Parts CX240D5 Solid State Relays Control Voltage Range 3 VDC to 15 VDC

Product Details

Brand Name: Sensata

Model Number: CX240D5

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Manufacturer:
Sensata
Package / Case:
SIP-4
Length:
43.1 Mm
Width:
7.6 Mm
Height:
25.4 Mm
Input Current:
15 MA
Input Voltage:
280 V
Load Current Rating:
5 A
Load Voltage Rating:
280 VAC
Maximum Operating Temperature:
+ 80 C
Manufacturer:
Sensata
Package / Case:
SIP-4
Length:
43.1 Mm
Width:
7.6 Mm
Height:
25.4 Mm
Input Current:
15 MA
Input Voltage:
280 V
Load Current Rating:
5 A
Load Voltage Rating:
280 VAC
Maximum Operating Temperature:
+ 80 C
Aviation Parts CX240D5 Solid State Relays Control Voltage Range 3 VDC to 15 VDC

          Aviation Parts CX240D5 Solid State Relays Control Voltage Range 3 VDC to 15 VDC







Descriptions of Aviation Parts:

  • Dielectric Strength, Input/Output (50/60Hz) :4000 Vrms
  • Minimum Insulation Resistance (@ 500VDC):109 Ohm
  • Maximum Capacitance, Input/Output :10 pF
  • Ambient Operating Temperature Range :-10°C to 80°C
  • Ambient Storage Temperature Range :-10°C to 125°C
  • Weight (typical) :0.4 oz (11g)
  • Encapsulation :Thermally Conductive Epoxy
  • Enclosure and PCB:Meets the requirements of IEC60335-1

Features of Aviation Parts:

  • SIP SSR
  • Ratings of 5 A @ 660 VAC
  • SCR output for heavy industrial loads
  • AC or DC control
  • Zero-crossing (resistive loads) or random-fire (inductive loads) output
  • CE Compliant to EN60950-1

Specifications of Aviation Parts:



Description Product Attribute
Manufacturer Sensata
Package / Case SIP-4
Length 43.1 mm
Width 7.6 mm
Height 25.4 mm
Category Electromechanical
Control Voltage Range 3 VDC to 15 VDC
Input Current 15 mA
Input Voltage 280 V
Load Current Rating 5 A
Load Voltage Rating 280 VAC
Maximum Operating Temperature + 80 C
Minimum Operating Temperature - 10 C
Mounting Style PCB Mount
Output Type SCR
Packaging Bulk
Pd - Power Dissipation 500 mW
Product Solid State Relays
Product Type SSR - Solid State Relays
Series CX
Termination Style Solder Pin
Type Heavy Duty
