Aviation Parts AD7715ANZ-5 Integrated Circuits Operating Temperature-40°C ~ 85°C

Model Number AD7715ANZ-5
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details boxes
Payment Terms L/C, T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Mfr Analog Devices Inc. Number Of Bits 16
Sampling Rate (Per Second) 500 Number Of Inputs 1
Voltage - Supply, Analog 5V Supplier Device Package 3V ~ 5.25V
Operating Temperature -40°C ~ 85°C Package / Case 16-DIP (0.300", 7.62mm)
Leave a Message
Product Description

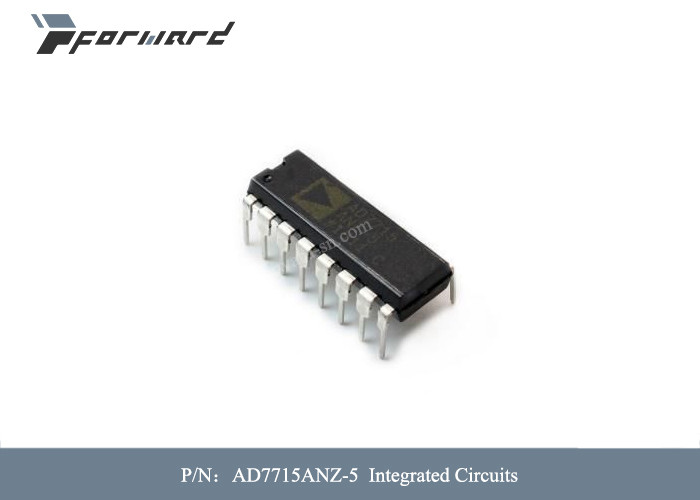

          Aviation Parts AD7715ANZ-5 Integrated Circuits Operating Temperature-40°C ~ 85°C







Descriptions of Aviation Parts:


The AD7715 is a complete analog front end for low frequency measurement applications. The part can accept low level input signals directly from a transducer and outputs a serial digital word. It employs a Σ-Δ conversion technique to realize up to 16 bits of no missing codes performance. The input signal is applied to a proprietary programmable gain front end based around an analog modulator. The modulator output is processed by an on-chip digital filter. The first notch of this digital filter can be programmed via the on-chip control register allowing adjustment of the filter cutoff and output update rate.

The AD7715 features a differential analog input as well as a differential reference input. It operates from a single supply (3 V or 5 V). It can handle unipolar input signal ranges of 0 mV to 20 mV, 0 mV to 80 mV, 0 V to 1.25 V and 0 V to 2.5 V. It can also handle bipolar input signal ranges of ±20 mV, ±80 mV, ±1.25 V and ±2.5 V. These bipolar ranges are referenced to the negative input of the differential analog input. The AD7715 thus performs all signal conditioning and conversion for a single channel system.

The AD7715 is ideal for use in smart, microcontroller, or DSPbased systems. It features a serial interface that can be configured for three-wire operation. Gain settings, signal polarity, and update rate selection can be configured in software using the input serial port. The part contains self-calibration and system calibration options to eliminate gain and offset errors on the part itself or in the system.

CMOS construction ensures very low power dissipation, and power-down mode reduces the standby power consumption to 50 µW typical. The part is available in a 16-lead, 0.3 inch-wide, plastic dual-in-line package (PDIP) as well as a 16-lead 0.3 inch wide small outline (SOIC_W) package and a 16-lead TSSOP package.


Features of Aviation Parts:

  • The AD7715 consumes less than 450 µA in total supply current at 3 V supplies and 1 MHz master clock, making it ideal for use in low-power systems. Standby current is less than 10 µA.
  • The programmable gain input allows the AD7715 to accept input signals directly from a strain gage or transducer removing a considerable amount of signal conditioning.
  • The AD7715 is ideal for microcontroller or DSP processor applications with a three-wire serial interface reducing the number of interconnect lines and reducing the number of optocouplers required in isolated systems. The part contains on-chip registers which allow software control over output update rate, input gain, signal polarity, and calibration modes.
  • The part features excellent static performance specifications with 16-bits no missing codes, ±0.0015% accuracy, and low rms noise . Endpoint errors and the effects of temperature drift are eliminated by on-chip calibration options, which remove zero-scale and full-scale errors.


Specifications of Aviation Parts:



TYPE DESCRIPTION
Category

Integrated Circuits (ICs)

Data Acquisition

Analog to Digital Converters (ADC)

Mfr Analog Devices Inc.
Series -
Package Tube
Product Status Active
Number of Bits 16
Sampling Rate (Per Second) 500
Number of Inputs 1
Input Type Differential
Data Interface SPI, DSP
Configuration PGA-ADC
Ratio - S/H:ADC -
Number of A/D Converters 1
Architecture Sigma-Delta
Reference Type External
Voltage - Supply, Analog 5V
Voltage - Supply, Digital 3V ~ 5.25V
Features PGA
Operating Temperature -40°C ~ 85°C
Package / Case 16-DIP (0.300", 7.62mm)
Supplier Device Package 16-PDIP
Mounting Type Through Hole
Base Product Number AD7715





Aviation Parts AD7715ANZ-5 Integrated Circuits Operating Temperature-40°C ~ 85°C 0
