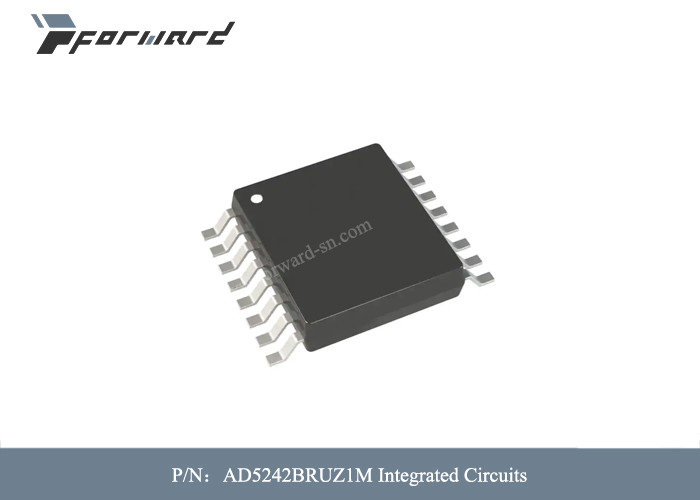

Aviation Parts AD5242BRUZ1M Integrated Circuits Tolerance -30%, +50%

Product Details

Model Number: AD5242BRUZ1M

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Features:
Selectable Address
Mfr:
Analog Devices Inc.
Tolerance:
-30%, +50%
Temperature Coefficient (Typ):
30ppm/°C
Temperature Coefficient:
30ppm/°C
Supplier Device Package:
16-TSSOP
Operating Temperature:
-40°C ~ 105°C
Resistance - Wiper (Ohms) (Typ):
60
Features:
Selectable Address
Mfr:
Analog Devices Inc.
Tolerance:
-30%, +50%
Temperature Coefficient (Typ):
30ppm/°C
Temperature Coefficient:
30ppm/°C
Supplier Device Package:
16-TSSOP
Operating Temperature:
-40°C ~ 105°C
Resistance - Wiper (Ohms) (Typ):
60
Aviation Parts AD5242BRUZ1M Integrated Circuits Tolerance -30%, +50%

                   Aviation Parts AD5242BRUZ1M Integrated Circuits Tolerance -30%, +50%







Descriptions of Aviation Parts:


The AD5241/AD52421 provide a single-/dual-channel, 256-position, digitally controlled variable resistor (VR) device. These devices perform the same electronic adjustment function as a potentiometer, trimmer, or variable resistor. Each VR offers a completely programmable value of resistance between the A terminal and the wiper, or the B terminal and the wiper. For the AD5242, the fixed A-to-B terminal resistance of 10 kΩ, 100 kΩ, or 1 MΩ has a 1% channel-to-channel matching tolerance. The nominal temperature coefficient of both parts is 30 ppm/°C.

Wiper position programming defaults to midscale at system power on. When powered, the VR wiper position is programmed by an I 2C-compatible, 2-wire serial data interface. Both parts have two extra programmable logic outputs available that enable users to drive digital loads, logic gates, LED drivers, and analog switches in their system.

The AD5241/AD5242 are available in surface-mount, 14-lead SOIC and 16-lead SOIC packages and, for ultracompact solutions, 14-lead TSSOP and 16-lead TSSOP packages. All parts are guaranteed to operate over the extended temperature range of −40°C to +105°C.


Features of Aviation Parts:

  • 256 positions
  • 10 kΩ, 100 kΩ, 1 MΩ
  • Low temperature coefficient: 30 ppm/°C
  • Internal power on midscale preset
  • Single-supply 2.7 V to 5.5 V or dual-supply ±2.7 V for ac or bipolar operation
  • I 2C-compatible interface with readback capability
  • Extra programmable logic outputs
  • Self contained shutdown feature
  • Extended temperature range: −40°C to +105°C


Specifications of Aviation Parts:



TYPE DESCRIPTION
Category

Integrated Circuits (ICs)

Data Acquisition

Digital Potentiometers

Mfr Analog Devices Inc.
Series -
Package Tube
Product Status Active
Digi-Key Programmable Not Verified
Taper Linear
Configuration Potentiometer
Number of Circuits 2
Number of Taps 256
Resistance (Ohms) 1M
Interface I²C
Memory Type Volatile
Voltage - Supply 2.7V ~ 5.5V, ±2.3V ~ 2.7V
Features Selectable Address
Tolerance -30%, +50%
Temperature Coefficient (Typ) 30ppm/°C
Mounting Type Surface Mount
Supplier Device Package 16-TSSOP
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Operating Temperature -40°C ~ 105°C
Resistance - Wiper (Ohms) (Typ) 60
Base Product Number AD5242
