Home > products > Aviation Parts > Aviation Parts AD581SH Integrated Circuits Voltage Output (Min/Fixed) 10V

Aviation Parts AD581SH Integrated Circuits Voltage Output (Min/Fixed) 10V

Product Details

Model Number: AD581SH

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Mfr:
Analog Devices Inc.
Voltage - Output (Min/Fixed):
10V
VCurrent - Output:
10 MA
Tolerance:
±0.3%
Temperature Coefficient:
30ppm/°C
Noise - 0.1Hz To 10Hz:
40µVp-p
Voltage - Input:
13V ~ 30V
Current - Supply:
1mA
Mfr:
Analog Devices Inc.
Voltage - Output (Min/Fixed):
10V
VCurrent - Output:
10 MA
Tolerance:
±0.3%
Temperature Coefficient:
30ppm/°C
Noise - 0.1Hz To 10Hz:
40µVp-p
Voltage - Input:
13V ~ 30V
Current - Supply:
1mA

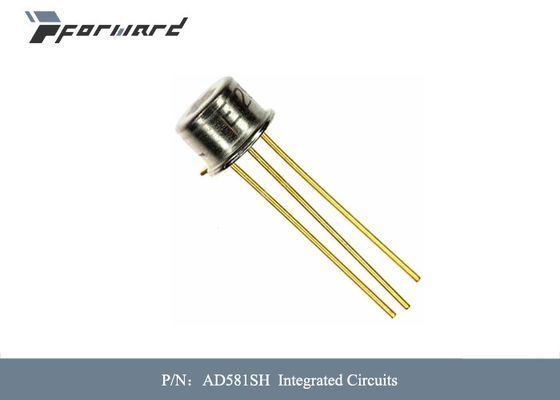

Aviation Parts AD581SH Integrated Circuits Voltage Output (Min/Fixed) 10V

                Aviation Parts AD581SH Integrated Circuits Voltage Output (Min/Fixed) 10V






Descriptions of Aviation Parts:


The AD581 is a 3-pin, temperature compensated, monolithic, band gap voltage reference that provides a precise 10.00 V output from an unregulated input level ranging from 12 V to 30 V. Laser wafer trimming (LWT) is used to trim both the initial error at +25°C as well as the temperature coefficient, resulting in high precision performance previously available only in expensive hybrids or oven regulated modules. The 5 mV initial error tolerance and 5 ppm/°C guaranteed temperature coefficient of the AD581L is available in a monolithic voltage reference.



The band gap circuit design used in the AD581 offers several advantages over classical Zener breakdown diode techniques. Most important, no external components are required to achieve full accuracy and significant stability to low power systems. In addition, total supply current to the device, including the output buffer amplifier (which can supply up to 10 mA) is typically 750 μA. The long-term stability of the band gap design is equivalent to selected Zener reference diodes.

The AD581 is recommended for use as a reference for 8-, 10- or 12-bit digital-to-analog converters (DACs) that require an external precision reference. The device is also ideal for all types of analog-to-digital converters (ADCs) up to 14-bit accuracy, either successive approximation or integrating designs, and can generally offer better performance than that provided by standard self-contained references.



The AD581J, AD581K, and AD581L are specified for operation from 0°C to 70°C; the AD581S, AD581T, and AD581U are specified for the −55°C to +125°C range. All grades are packaged in a hermetically sealed 3-pin TO-5 metal can.


Features of Aviation Parts:

  • Laser trimming of both initial accuracy and temperature coefficient results in very low errors over temperature without the use of external components. The AD581L has a maximum deviation from 10.000 V of ±7.25 mV from 0°C to 70°C, whereas the AD581U guarantees ±15 mV maximum total error without external trims from −55°C to +125°C.
  • Because the laser trimming is done on the wafer prior to separation into individual chips, the AD581 is extremely valuable to hybrid designers for its ease of use, lack of required external trims, and inherent high performance.
  • The AD581 can also be operated in a 2-pin Zener mode to provide a precision −10 V reference with just one external resistor to the unregulated supply. The performance in this mode is nearly equal to that of the standard 3-pin configuration.
  • Advanced circuit design using the band gap concept allows the AD581 to give full performance with an unregulated input voltage down to 13 V. With an external resistor, the device operates with a supply as low as 11.4 V. 5. The AD581 is available in versions compliant with MILSTD-883. Refer to the military datasheet for detailed specifications.


Specifications of Aviation Parts:



TYPE DESCRIPTION
Category

Integrated Circuits (ICs)

Power Management (PMIC)

Voltage Reference

Mfr Analog Devices Inc.
Series -
Package Bulk
Product Status Active
Reference Type Series
Output Type Fixed
Voltage - Output (Min/Fixed) 10V
Current - Output 10 mA
Tolerance ±0.3%
Temperature Coefficient 30ppm/°C
Noise - 0.1Hz to 10Hz 40µVp-p
Noise - 10Hz to 10kHz -
Voltage - Input 13V ~ 30V
Current - Supply 1mA
Operating Temperature -55°C ~ 125°C (TA)
Mounting Type Through Hole
Package / Case TO-205AA, TO-5-3 Metal Can
Supplier Device Package TO-5-3
Base Product Number AD581
