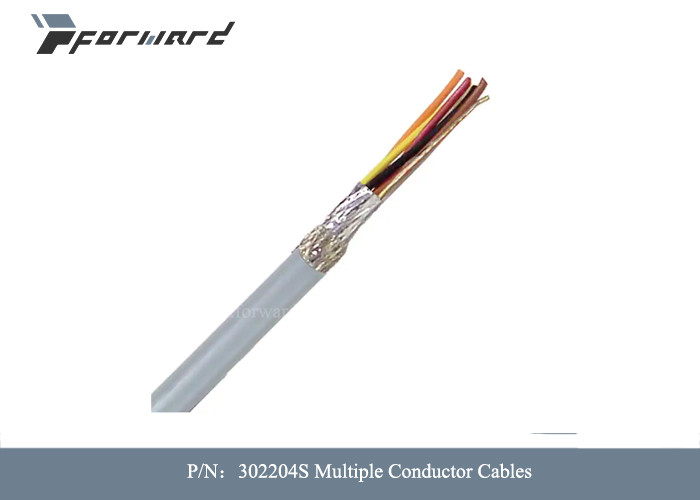

Aviation Parts 302204S Multiple Conductor Cables Wire Gauge 22 AWG

Product Details

Model Number: 302204S

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Mfr:
Belden Inc.
Cable Type:
Multi-Conductor
Wire Gauge:
22 AWG
Conductor Material:
Copper, Bare
Acket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter:
0.223" (5.66mm)
Shield Type:
Foil, Braid
Jacket Color:
Gray
Mfr:
Belden Inc.
Cable Type:
Multi-Conductor
Wire Gauge:
22 AWG
Conductor Material:
Copper, Bare
Acket (Insulation) Material:
Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Diameter:
0.223" (5.66mm)
Shield Type:
Foil, Braid
Jacket Color:
Gray
Aviation Parts 302204S Multiple Conductor Cables Wire Gauge 22 AWG


                Aviation Parts 302204S Multiple Conductor Cables Wire Gauge 22 AWG





Descriptions of Aviation Parts:

UNITRONIC® 300/300 S is a rugged, multi-conductor, low voltage control and signal cable for internal and external wiring of OEM equipment for industrial applications. The jacket is very oil resistant and is pressure-extruded for improved flexibility and easier installation. UNITRONIC® 300 S has a foil tape and tinned copper braid shield for maximum RFI & EMI protection.

Features of Aviation Parts:


Unshielded construction of Aviation Parts:

  • Conductors: finely stranded tinned copper
  • Insulation: blended PVC
  • Jacket: specially formulated PVC; gray

Shielded construction of Aviation Parts:

  • Conductors: finely stranded tinned copper
  • Insulation: blended PVC
  • Shielding: tri-laminate foil shield and tinned copper braid
  • (75% coverage); drain wire
  • Jacket: specially formulated PVC; gray

Application advantage of Aviation Parts:

  • Extended temperature rating of -40°C to +105°C
  • Flexible design for ease of routing
  • Suitable for use in cable tray
  • Oil- and UV-resistant jacket (Oil Res I)
  • Sequential foot marking for ease of installation

Specifications of Aviation Parts:



TYPE DESCRIPTION
Category

Cables, Wires
Multiple Conductor Cables

Mfr Belden Inc.
Series -
Package Box
Product Status Active
Cable Type Multi-Conductor
Number of Conductors 4
Wire Gauge 22 AWG
Conductor Strand 7/30
Conductor Material Copper, Bare
Jacket (Insulation) Material Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Diameter 0.145" (3.68mm)
Shield Type Foil
Length 500.0' (152.4m)
Jacket Color Gray
Ratings UL Style CMR
Features Drain Wire, Rip Cord
Operating Temperature -20°C ~ 75°C
Usage Alarm, Security, Sound
Jacket (Insulation) Thickness 0.0170" (0.432mm)
Conductor Insulation Polypropylene (PP)
Shield Material Aluminum
Shield Coverage 100%
Base Product Number 5502FE
