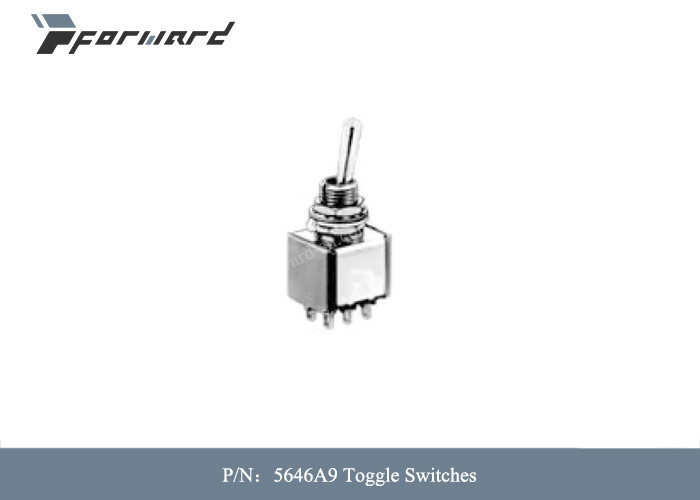

Aviation Parts 5646A9 Miniature Toggle Switch Current Rating 6 A

Product Details

Model Number: 5646A9 Toggle Switches

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Manufacturer::
Apem
Switch Function:
ON - (OFF)
Mounting Style:
Panel Mount
VTermination Style:
Solder Lug
Current Rating:
6 A
Voltage Rating AC:
125 VAC
Voltage Rating DC:
30 VDC
Bushing Size:
1/4-40
Manufacturer::
Apem
Switch Function:
ON - (OFF)
Mounting Style:
Panel Mount
VTermination Style:
Solder Lug
Current Rating:
6 A
Voltage Rating AC:
125 VAC
Voltage Rating DC:
30 VDC
Bushing Size:
1/4-40
Aviation Parts 5646A9 Miniature Toggle Switch Current Rating 6 A

                          Aviation Parts 5646A9 Miniature Toggle Switch Current Rating 6 A




Descriptions of Aviation Parts:


• 17 actuators including toggles, paddle levers and locking levers in different lengths.

• Various contact materials for low and high currents.

• 8 functions including maintained and momentary versions.

• 1 to 4 pole configurations.

• Other types include quick-connect and wire-wrap.

• 3 types of finish including military black.

• 3 approvals (UL - CSA - CECC).

• 4 types of sealing for terminal or front panel requirements.

• Numerous accessories available.

Features of Aviation Parts:



• Hermetically sealed per MIL-S-8805, design symbol 5

• Broad temperature tolerance range of -65 C to 121 C [-85 F to 250 F]

• High temperature construction for use in a range of -65 C to 260 C [-85 F to 500 F]

• MIL-PFR-8805 qualified listing

• Not sensitive to changes in altitude or pressure

• Compact size, light weight

• Gold contacts available

• Choice of actuation and termination

Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Apem
Product Category: Toggle Switches
RoHS: Details
Illuminated: Non-Illuminated
Illumination Color: -
Lamp Type: -
Contact Form: DPDT
Switch Function: ON - (OFF)
Mounting Style: Panel Mount
Termination Style: Solder Lug
Current Rating: 6 A
Voltage Rating AC: 125 VAC
Voltage Rating DC: 30 VDC
Bushing Size: 1/4-40
Actuator: Bat
Terminal Seal: Unsealed
Actuator Style: Bat
Brand: Apem
Contact Material: Silver
Flammability Rating: UL 94 V-0
Housing Material: Stainless Steel
Insulation Resistance: 1000 MOhms
Life: 50000 Cycles
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
Mounting Angle: Vertical
Mounting Type: Bushing
Product Type: Toggle Switches
Factory Pack Quantity: 50
Subcategory: Switches
Type: Miniature Toggle Switch
