Aviation Parts 8STA60205SN Circular MIL Spec Connector Socket (Female)

Product Details

Model Number: 8STA60205SN

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Manufacturer:
Souriau
Contact Material:
Copper Alloy
Contact Gender:
Socket (Female)
Contact Plating:
Gold
Current Rating:
3 A
MIL Type:
MIL-DTL-38999
Mating Style:
Bayonet
Mounting Angle:
Straight
Manufacturer:
Souriau
Contact Material:
Copper Alloy
Contact Gender:
Socket (Female)
Contact Plating:
Gold
Current Rating:
3 A
MIL Type:
MIL-DTL-38999
Mating Style:
Bayonet
Mounting Angle:
Straight

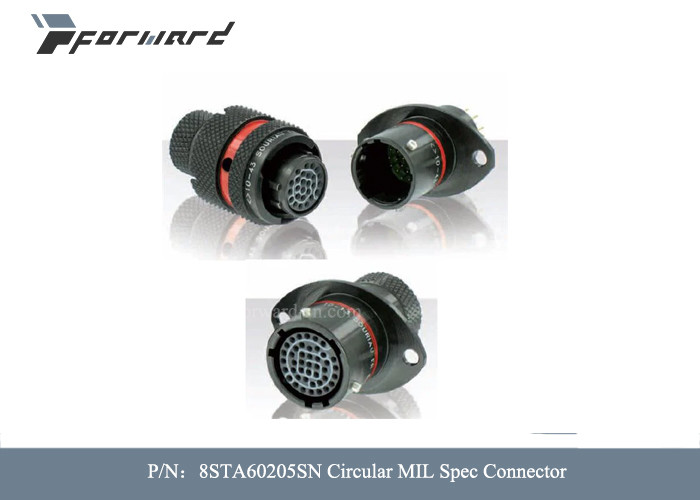

Aviation Parts 8STA60205SN Circular MIL Spec Connector Socket (Female)

Aviation Parts 8STA60205SN Circular MIL Spec Connector Socket (Female)





Descriptions of Aviation Parts:



Souriau Mil-Spec Circular Connectors 38999 Series I, II, III & 26482 Series I & II offer a complete range of standard and derived circular connectors for harsh environments. Suitable for military, railway, and extreme industrial applications, these connectors are based on the MIL-DTL38999 and MIL-DTL-26482 standards. Micro, QPL, Hermetics, High Density, and High-Speed versions are available.



Features of Aviation Parts:



• A very high contact density,

• MIL-DTL-38999 Series I contact layouts,

• The male contacts are recessed into the body to prevent damage by mismating (100% scoop proof),

• Keyway polarization (master keyway),

• RFI-EMI shielding and shell to shell continuity,

• Receptacle fixings and backshells as per pattern 602 and MIL-C-26482 Series II.



Specifications of Aviation Parts:



Description Product Attribute
Manufacturer Souriau
Connectors Circular MIL Spec Connector
Contact Gender Socket (Female)
Contact Material Copper Alloy
Contact Plating Gold
Current Rating 3 A
Insert Arrangement 02-05
MIL Type MIL-DTL-38999
Mating Style Bayonet
Mounting Angle Straight
Mounting Style Cable
Number of Positions 5 Position
Packaging Each
Product Plugs
Product Type Circular MIL Spec Connector
Series 8STA
Shell Material Aluminum
Shell Plating Zinc
Shell Size 2
Shell Style Straight
Termination Style Crimp
Voltage Rating 400 V
