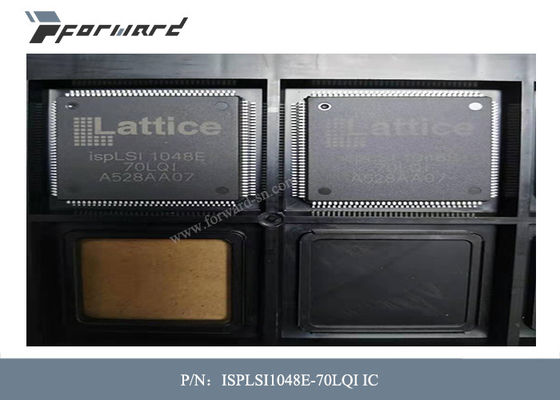

Aviation Parts ISPLSI1048E-70LQI Operating Supply Voltage 5 V

Product Details

Model Number: ISPLSI1048E-70LQI

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
RoHS::
N
Operating Supply Voltage::
5 V
Number Of Macrocells::
192
Number Of I/Os::
96 I/O
Supply Voltage - Max::
5.25 V
Supply Voltage - Min::
4.75 V
Minimum Operating Temperature::
0 C
Maximum Operating Temperature::
+ 70 C
Packaging::
Tray
RoHS::
N
Operating Supply Voltage::
5 V
Number Of Macrocells::
192
Number Of I/Os::
96 I/O
Supply Voltage - Max::
5.25 V
Supply Voltage - Min::
4.75 V
Minimum Operating Temperature::
0 C
Maximum Operating Temperature::
+ 70 C
Packaging::
Tray
Aviation Parts ISPLSI1048E-70LQI Operating Supply Voltage 5 V

Aviation Parts ISPLSI1048E-70LQI Operating Supply Voltage 5 V





Descriptions of Aviation Parts:



The ispLSI 1048E is a High Density Programmable Logic Device containing 288 Registers, 96 Universal I/O pins, 12 Dedicated Input pins, four Dedicated Clock Input pins, two dedicated Global OE input pins, and a Global Routing Pool (GRP). The GRP provides complete interconnectivity between all of these elements.

The ispLSI 1048E offers 5V non-volatile in-system programmability of the logic, as well as the interconnect to provide truly reconfigurable systems. A functional superset of the ispLSI 1048 architecture, the ispLSI 1048E device adds two new global output enable pins and two additional dedicated inputs.

The basic unit of logic on the ispLSI 1048E device is the Generic Logic Block (GLB). The GLBs are labeled A0, A1…F7 (see Figure 1). There are a total of 48 GLBs in the ispLSI 1048E device. Each GLB has 18 inputs, a programmable AND/OR/Exclusive OR array, and four outputs which can be configured to be either combinatorial or registered. Inputs to the GLB come from the GRP and dedicated inputs. All of the GLB outputs are brought back into the GRP so that they can be connected to the inputs of any other GLB on the device.



Features of Aviation Parts:



• HIGH DENSITY PROGRAMMABLE LOGIC

— 8,000 PLD Gates — 96 I/O Pins, Twelve Dedicated Inputs

— 288 Registers — High-Speed Global Interconnects

— Wide Input Gating for Fast Counters, State Machines, Address Decoders, etc.

— Small Logic Block Size for Random Logic

— Functionally and Pin-out Compatible to ispLSI 1048C

• HIGH PERFORMANCE E2CMOS® TECHNOLOGY

— fmax = 125 MHz Maximum Operating Frequency

— tpd = 7.5 ns Propagation Delay

— TTL Compatible Inputs and Outputs

— Electrically Eraseable and Reprogrammable

— Non-Volatile

— 100% Tested at Time of Manufacture

• IN-SYSTEM PROGRAMMABLE

— In-System Programmable (ISP™) 5V Only

— Increased Manufacturing Yields, Reduced Time-toMarket and Improved Product Quality

— Reprogram Soldered Devices for Faster Prototyping

• OFFERS THE EASE OF USE AND FAST SYSTEM SPEED OF PLDs WITH THE DENSITY AND FLEXIBILITY OF FIELD PROGRAMMABLE GATE ARRAYS

— Complete Programmable Device Can Combine Glue Logic and Structured Designs

— Enhanced Pin Locking Capability

— Four Dedicated Clock Input Pins

— Synchronous and Asynchronous Clocks

— Programmable Output Slew Rate Control to Minimize Switching Noise

— Flexible Pin Placement

— Optimized Global Routing Pool Provides Global Interconnectivity

— Lead-Free Package Options



Specifications of Aviation Parts:



Product Attribute Attribute Value
Product Category: CPLD - Complex Programmable Logic Devices
RoHS: N
Series: ispLSI 1048E
Mounting Style: SMD/SMT
Package / Case: PQFP-128
Operating Supply Voltage: 5 V
Number of Macrocells: 192
Number of I/Os: 96 I/O
Supply Voltage - Max: 5.25 V
Supply Voltage - Min: 4.75 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Maximum Operating Frequency: 70 MHz
Propagation Delay - Max: 15 ns
Packaging: Tray
Brand: Lattice
Height: 3.4 mm
Length: 28 mm
Memory Type: EEPROM
Moisture Sensitive: Yes
Number of Gates: 8000
Number of Logic Array Blocks - LABs: 48
Operating Supply Current: 175 mA
Product Type: CPLD - Complex Programmable Logic Devices
Factory Pack Quantity: 24
Subcategory: Programmable Logic ICs
Tradename: ispLSI
Width: 28 mm
