Aviation Parts EP1K100FC484-3N Number of Logic Elements 4992 LE

Product Details

Model Number: EP1K100FC484-3N

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Series::
ACEX 1K EP1K100
Number Of Logic Elements::
4992 LE
Number Of I/Os::
333 I/O
Supply Voltage - Min::
2.375 V
Supply Voltage - Max::
2.625 V
Minimum Operating Temperature::
0 C
Maximum Operating Temperature::
+ 70 C
Packaging::
Tray
Moisture Sensitive::
390299-000
Number Of Gates::
257000
Series::
ACEX 1K EP1K100
Number Of Logic Elements::
4992 LE
Number Of I/Os::
333 I/O
Supply Voltage - Min::
2.375 V
Supply Voltage - Max::
2.625 V
Minimum Operating Temperature::
0 C
Maximum Operating Temperature::
+ 70 C
Packaging::
Tray
Moisture Sensitive::
390299-000
Number Of Gates::
257000

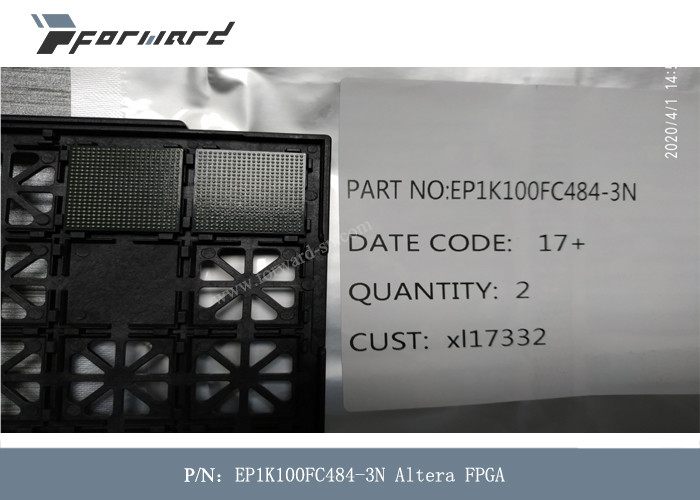

Aviation Parts EP1K100FC484-3N Number of Logic Elements 4992 LE

Aviation Parts EP1K100FC484-3N Number of Logic Elements 4992 LE





Descriptions of Aviation Parts:



Altera® ACEX 1K devices provide a die-efficient, low-cost architecture by combining look-up table (LUT) architecture with EABs. LUT-based logic provides optimized performance and efficiency for data-path, register intensive, mathematical, or digital signal processing (DSP) designs, while EABs implement RAM, ROM, dual-port RAM, or first-in first-out (FIFO) functions. These elements make ACEX 1K suitable for complex logic functions and memory functions such as digital signal processing, wide data-path manipulation, data transformation and microcontrollers, as required in high-performance communications applications. Based on reconfigurable CMOS SRAM elements, the ACEX 1K architecture incorporates all features necessary to implement common gate array megafunctions, along with a high pin count to enable an effective interface with system components. The advanced process and the low voltage requirement of the 2.5-V core allow ACEX 1K devices to meet the requirements of low-cost, high-volume applications ranging from DSL modems to low-cost switches.

         The ability to reconfigure ACEX 1K devices enables complete testing prior to shipment and allows the designer to focus on simulation and design verification. ACEX 1K device reconfigurability eliminates inventory management for gate array designs and test vector generation for fault coverage



Features of Aviation Parts:



■ Programmable logic devices (PLDs), providing low cost system-on-a-programmable-chip (SOPC) integration in a single device

– Enhanced embedded array for implementing megafunctions such as efficient memory and specialized logic functions

– Dual-port capability with up to 16-bit width per embedded array block (EAB)

– Logic array for general logic functions

■ High density

– 10,000 to 100,000 typical gates (see Table 1)

– Up to 49,152 RAM bits (4,096 bits per EAB, all of which can be used without reducing logic capacity)

■ Cost-efficient programmable architecture for high-volume applications

– Cost-optimized process

– Low cost solution for high-performance communications applications

■ System-level features

– MultiVoltTM I/O pins can drive or be driven by 2.5-V, 3.3-V, or 5.0-V devices

– Low power consumption

– Bidirectional I/O performance (setup time [tSU] and clock-tooutput delay [tCO]) up to 250 MHz

– Fully compliant with the peripheral component interconnect Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2 for 3.3-V operation at 33 MHz or 66 MHz



Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: Intel
Product Category: FPGA - Field Programmable Gate Array
RoHS: Details
Series: ACEX 1K EP1K100
Number of Logic Elements: 4992 LE
Number of I/Os: 333 I/O
Supply Voltage - Min: 2.375 V
Supply Voltage - Max: 2.625 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Data Rate: -
Number of Transceivers: -
Mounting Style: SMD/SMT
Package / Case: FBGA-484
Packaging: Tray
Moisture Sensitive: Yes
Number of Gates: 257000
Number of Logic Array Blocks - LABs: 624 LAB
Operating Supply Current: 5 mA
Operating Supply Voltage: 2.5 V
Product Type: FPGA - Field Programmable Gate Array
Factory Pack Quantity: 60
Subcategory: Programmable Logic ICs
Total Memory: 49152 bit
Tradename: ACEX 1K
Part # Aliases: 970858
