Home > products > Aviation Parts > Aviation Parts DK-621-0439-4P Connectors Data Bus Components

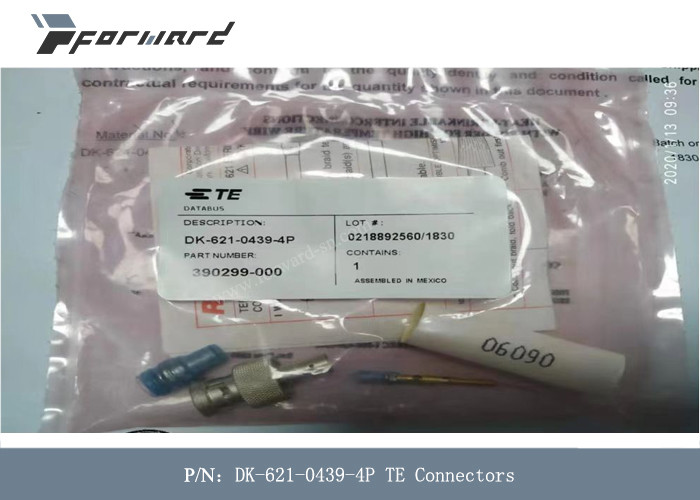

Aviation Parts DK-621-0439-4P Connectors Data Bus Components

Product Details

Model Number: DK-621-0439-4P

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Contact Gender::
Pin (Male)
Mating Style::
Bayonet - D
Termination Style::
Solder
Mounting Angle::
Straight
Minimum Operating Temperature::
- 65 C
Maximum Operating Temperature::
+ 150 C
Packaging::
Bulk
Factory Pack Quantity::
5
Part # Aliases::
390299-000
Contact Gender::
Pin (Male)
Mating Style::
Bayonet - D
Termination Style::
Solder
Mounting Angle::
Straight
Minimum Operating Temperature::
- 65 C
Maximum Operating Temperature::
+ 150 C
Packaging::
Bulk
Factory Pack Quantity::
5
Part # Aliases::
390299-000
Aviation Parts DK-621-0439-4P Connectors Data Bus Components

Aviation Parts DK-621-0439-4P Connectors Data Bus Components





Descriptions of Aviation Parts:



Raychem D-621 and DK-621 series connectors are designed specifically for MIL-STD-1553B data bus applications. In addition to utilizing Raychem’s heat-shrink technology.



Features of Aviation Parts:



RUGGED RELIABILITY

• Low voltage drop and high reliability due to precisely controlled solder terminations

• 1000-hour salt spray resistance, rugged construction

CONVENIENT

• Light weight, built-in strain relief

• Continuous 360° shield coverage

EASY INSTALLATION

• Low-skill assembly, low total installed cost

• Fast termination time of 1 to 2 minutes

• Installation Procedures: ES-61162 and ES-61420

VERSATILE

• Inspectable solder terminations

• Reworkable and repairable terminations

• Removable pin or socket contacts

COMPATIBLE

• Termination with Raychem MIL SPEC and MIL-STD-1553B data bus cables, including EMP-hardened versions



Specifications of Aviation Parts:



Product Attribute Attribute Value
Product Category: Data Bus Components - Connectors
RoHS: N
Type: Plug
Contact Gender: Pin (Male)
Mating Style: Bayonet - D
Mounting Style: Cable
Termination Style: Solder
Mounting Angle: Straight
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 150 C
Packaging: Bulk
Product Type: Data Bus Connectors
Factory Pack Quantity: 5
Subcategory: Data Bus Components
Part # Aliases: 390299-000
Unit Weight: 1 oz
