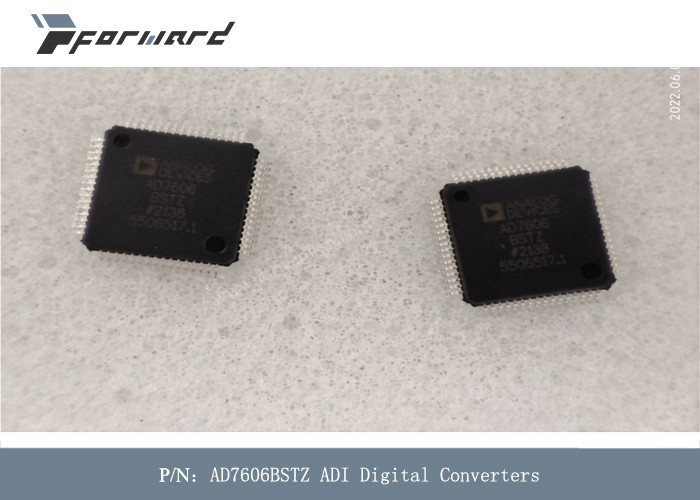

Aviation Parts AD7606BSTZ Digital Converters Pitch 0.100" (2.54mm)

Product Details

Model Number: AD7606BSTZ

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Pitch:
0.100" (2.54mm)
Number Of Rows:
200 KS/s
SNR - Signal To Noise Ratio::
95.5 DB
Operating Temperature:
- 40 C
Maximum Operating Temperature::
+ 85 C
DNL - Differential Nonlinearity::
+/- 0.99 LSB
Gain Error::
+/- 32 LSB
INL - Integral Nonlinearity::
+/- 2 LSB
Input Voltage::
+/- 5 V/+/- 10 V
Pitch:
0.100" (2.54mm)
Number Of Rows:
200 KS/s
SNR - Signal To Noise Ratio::
95.5 DB
Operating Temperature:
- 40 C
Maximum Operating Temperature::
+ 85 C
DNL - Differential Nonlinearity::
+/- 0.99 LSB
Gain Error::
+/- 32 LSB
INL - Integral Nonlinearity::
+/- 2 LSB
Input Voltage::
+/- 5 V/+/- 10 V
Aviation Parts AD7606BSTZ Digital Converters Pitch 0.100" (2.54mm)

Aviation Parts AD7606BSTZ Digital Converters Pitch 0.100" (2.54mm)





Descriptions of Aviation Parts:



8/6/4 simultaneously sampled inputs True bipolar analog input ranges: ±10 V, ±5 V Pin to pin compatible with the state-of-the-art AD7606B Single 5 V analog supply and 2.3 V to 5 V VDRIVE

Fully integrated data acquisition solution

  • Analog input clamp protection
  • Input buffer with 1 MΩ analog input impedance
  • Second-order antialiasing analog filter
  • On-chip accurate reference and reference buffer
  • 16-bit ADC with 200 kSPS on all channels
  • Oversampling capability with digital filter

Flexible parallel/serial interface

  • SPI/QSPI™/MICROWIRE™/DSP compatible



Features of Aviation Parts:

  • 7 kV ESD rating on analog input channels
  • 95.5 dB SNR, −107 dB THD ±0.5 LSB INL,
  • ±0.5 LSB DNL Low power: 100 mW Standby mode: 25 mW
  • Temperature range: −40°C to +85°C
  • 64-lead LQFP package



Specifications of Aviation Parts:



Product Attribute Attribute Value
Product Category: Analog to Digital Converters - ADC
RoHS: Details
Series: AD7606
Mounting Style: SMD/SMT
Package / Case: LQFP-64
Resolution: 16 bit
Number of Channels: 8 Channel
Interface Type: Parallel, SPI
Sampling Rate: 200 kS/s
Input Type: Single-Ended
Architecture: SAR
SNR - Signal to Noise Ratio: 95.5 dB
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 85 C
Packaging: Tray
Development Kit: EVAL-AD7606EDZ
DNL - Differential Nonlinearity: +/- 0.99 LSB
Gain Error: +/- 32 LSB
Height: 1.4 mm
INL - Integral Nonlinearity: +/- 2 LSB
Input Voltage: +/- 5 V/+/- 10 V
Length: 10 mm
Moisture Sensitive: Yes
Number of ADC Inputs: 8 Input
Number of Converters: 1 Converter
Operating Supply Voltage: 5 V
Pd - Power Dissipation: 142 mW
Power Consumption: 100 mW
Reference Type: External, Internal
Sample and Hold: Yes
Factory Pack Quantity: 160
Subcategory: Data Converter ICs
Supply Voltage - Max: 5 V
Supply Voltage - Min: 5 V
Type: S/H ADC
Width: 10 mm
Unit Weight: 0.028219 oz



Aviation Parts  AD7606BSTZ  Digital Converters Pitch 0.100" (2.54mm) 0
