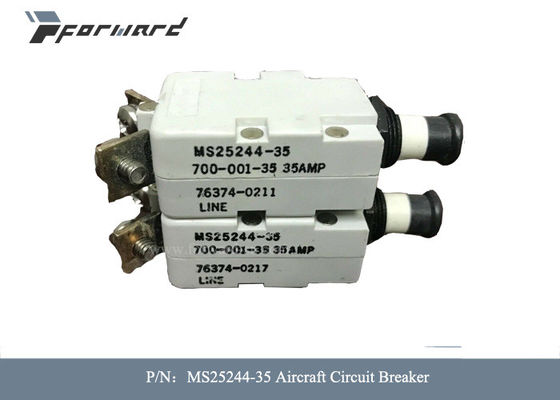

Aviation Parts MS25244-35 Aircraft Circuit Breaker Body Style Single Pole Type

Product Details

Brand Name: Eaton

Model Number: MS25244-35 Aircraft Circuit Breaker

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Body Style:
Single Pole Type
Bushing Length:
0.235 Inches Minimum And 0.265 Inches Maximum
Body Length:
1.094 Inches Maximum
Body Width:
0.750 Inches Maximum
Maximum Continuous Load Current Rating Per Pole:
35.0 Amperes Ac Single Location And 35.0 Amperes Dc Single Location
Operating Voltage Type And Rating Per Pole In Volts:
115.0 Ac Single Location And 28.0 Dc Single Location
Body Style:
Single Pole Type
Bushing Length:
0.235 Inches Minimum And 0.265 Inches Maximum
Body Length:
1.094 Inches Maximum
Body Width:
0.750 Inches Maximum
Maximum Continuous Load Current Rating Per Pole:
35.0 Amperes Ac Single Location And 35.0 Amperes Dc Single Location
Operating Voltage Type And Rating Per Pole In Volts:
115.0 Ac Single Location And 28.0 Dc Single Location
Aviation Parts MS25244-35 Aircraft Circuit Breaker Body Style Single Pole Type

Aviation Parts MS25244-35 Aircraft Circuit Breaker Body Style Single Pole Type





Descriptions of Aviaton Parts:



Exceeds military specification requirements for durability, vibration, mechanical shock, and acceleration.The 700 is a miniature push-pull breaker offering fast trip and high interrupting capacity. Its trip-free design prevents the breaker from being held closed manually on overloads.

A feature of the breaker is separate overload and mechanical latches. Separated in this way, the mechanical latch assures maximum endurance for the thousands of cycles of manual on-off operation, while the thermal latch combines both precise operation and durability.



Features of Aviaton Parts:



Qualified To MS25244, MS25244-P and MS25244-PT of MIL-C-5809 (MS25244PT is a substitute for MS25017) .

Lightweight

Circuit breaker weighs only 43 grams.

High Interrupting Capacity

Interrupts a 6,000A circuit at 30V, DC; 3,500A circuit at 120V, 400 Hz. AC



Specifications of Aviaton Parts:



Aviation Parts MS25244-35 Aircraft Circuit Breaker Body Style Single Pole Type 0













Aviation Parts MS25244-35 Aircraft Circuit Breaker Body Style Single Pole Type 1
