Aviation Parts Toggle Switches 5646A9 Switch Function ON - (OFF)
| Model Number | 5646A9 |
|---|---|
| Price | Negotiable |
| Packaging Details | boxes |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Category | Toggle Switches | Illuminated | Non-Illuminated |
|---|---|---|---|
| Contact Form | DPDT | Switch Function | ON - (OFF) |
| Mounting Style | Panel Mount | Termination Style | Solder Lug |
| Current Rating | 6 A | Voltage Rating AC | 125 VAC |
| Voltage Rating DC | 30 VDC | Bushing Size | 1/4-40 |
| Highlight | 5646A9 Toggle Switches,Aviation Parts Toggle Switches,5646A9 Aviation Parts Toggle Switches |
||
Product Description

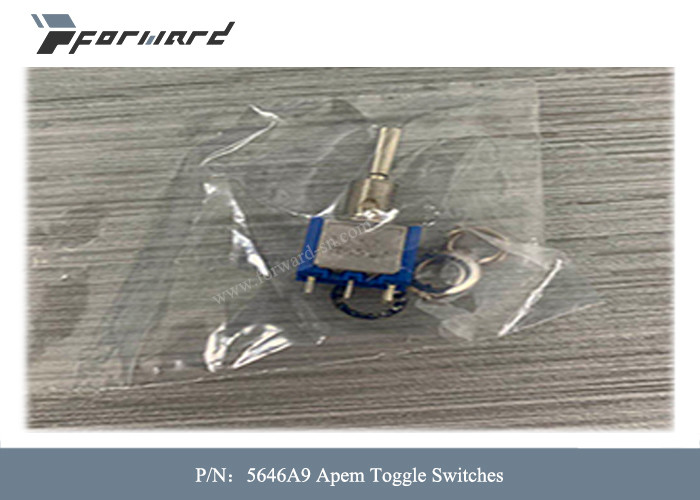

Aviation Parts Toggle Switches 5646A9 Switch Function ON - (OFF)
Descriptions of Aviation Parts:
The 5646A9 is a double-pole double-throw miniature Toggle Switch with solder lug terminals, threaded bushing versions for panel mounting and plain bushing versions for PCB, On-On switch operation, stainless steel housing, diallylphthalate (DAP) or high temperature plastic material (UL94-V0) case, nickel-plated brass actuator, silver contact, UL94HB polyamide paddles, vinyl lever caps and nickel-plated brass bushing
Features of Aviation Parts:
- Epoxy terminal seal
- 10mR Initial contact resistance
- 1000MR at 500VDC Minimum insulation resistance
- 50000 Cycles electrical life at full load
- -40 to +85°C Operating temperature range
Specifications of Aviation Parts:
| Product Attribute | Attribute Value |
| Product Category: | Toggle Switches |
| Illuminated: | Non-Illuminated |
| Illumination Color: | - |
| Lamp Type: | - |
| Contact Form: | DPDT |
| Switch Function: | ON - (OFF) |
| Mounting Style: | Panel Mount |
| Termination Style: | Solder Lug |
| Current Rating: | 6 A |
| Voltage Rating AC: | 125 VAC |
| Voltage Rating DC: | 30 VDC |
| Bushing Size: | 1/4-40 |
| Actuator: | Bat |
| Terminal Seal: | Unsealed |
| Actuator Style: | Bat |
| Contact Material: | Silver |
| Flammability Rating: | UL 94 V-0 |
| Housing Material: | Stainless Steel |
| Insulation Resistance: | 1000 MOhms |
| Life: | 50000 Cycles |
| Maximum Operating Temperature: | + 85 C |
| Minimum Operating Temperature: | - 40 C |
| Mounting Angle: | Vertical |
| Mounting Type: | Bushing |
| Product Type: | Toggle Switches |
| Factory Pack Quantity: | 50 |
| Subcategory: | Switches |
| Type: | Miniature Toggle Switch |
