Aviation Parts MS25041-2 INDICATOR LIGHT Overall Length 1.75 inches
| Model Number | MS25041-2 |
|---|---|
| Minimum Order Quantity | 1 pcs |
| Price | Negotiable |
| Packaging Details | boxes |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| FURNISHED ITEMS AND QUANTITY | 2 HEXAGON NUT AND 1 LOCK WASHER | FEATURES PROVIDED | BLACKOUT DEGREE, PARTIAL AND DIMMING DEVICE AND PRESS TO TEST |
|---|---|---|---|
| OVERALL DIAMETER | 0.650 INCHES MAXIMUM | OVERALL LENGTH | 1.750 INCHES MAXIMUM |
| PANEL ACCOMMODATION HOLE | 0.469 INCHES NOMINAL | PANEL THICKNESS FOR WHICH DESIGNED | 0.312 INCHES MAXIMUM |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED | LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| Highlight | INDICATOR LIGHT Aviation Parts,1.75 inches Aviation Parts,Aviation Parts INDICATOR LIGHT |
||
Product Description

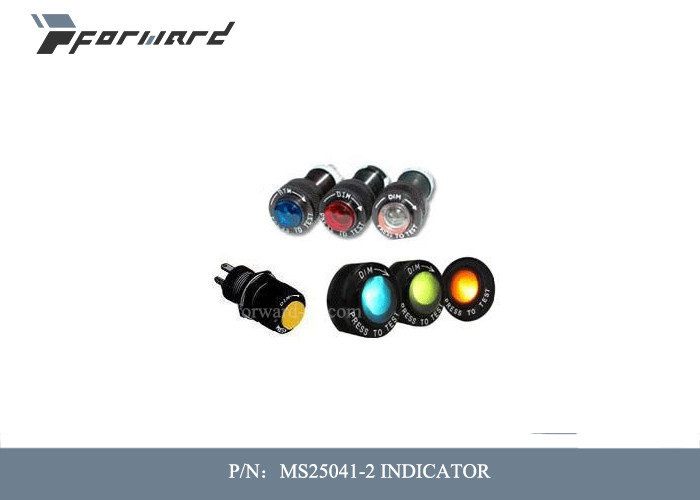

Aviation Parts MS25041-2 INDICATOR LIGHT Overall Length 1.75 Inches
Descriptions of Aviation Parts:
Indicator Light - With Dimmer Feature, Lens Color: Red, Small Indicator Light With Press To Test Function
Features of Aviation Parts:
Panel Thickness For Which Designed:
0.312 inches
Panel Accommodation Hole Diameter:
0.469 inches
Overall Length:
1.75 inches
Overall Diameter:
0.65 inches
Aluminum body
Mounting Method:
Specifications of Aviation Parts:
| Detail | Characteristic |
| FURNISHED ITEMS AND QUANTITY | 2 HEXAGON NUT AND 1 LOCK WASHER |
| FEATURES PROVIDED | BLACKOUT DEGREE, PARTIAL AND DIMMING DEVICE AND PRESS TO TEST |
| OVERALL DIAMETER | 0.650 INCHES MAXIMUM |
| OVERALL LENGTH | 1.750 INCHES MAXIMUM |
| PANEL ACCOMMODATION HOLE DIAMETER | 0.469 INCHES NOMINAL |
| PANEL THICKNESS FOR WHICH DESIGNED | 0.312 INCHES MAXIMUM |
| LAMP BASE TYPE ACCOMMODATED | MIDGET FLANGED |
| LAMP BULB SIZE DESIGNATOR | T-1 3/4 |
| LAMP TYPE ACCOMMODATED AND QUANTITY | 1 INCANDESCENT |
| LENS BACK SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS FACE SURFACE CONDITION | SMOOTH SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS LIGHT TRANSMISSION CHARACTERISTIC | TRANSPARENT SINGLE LIGHT 1ST POSITION HORIZONTAL |
| LENS MOUNTING METHOD | SCREW IN |
| LENS QUANTITY | 1 |
| LENS TYPE | FLAT, KNURLED, THREADED SHANK SINGLE LIGHT 1ST POSITION HORIZONTAL |
| MATERIAL | ALUMINUM BODY |
| MOUNTING METHOD | PANEL |
| SPECIAL FEATURES | DIM ARROW SYMBOL CW AND PRESS TO TEST ENGRAVED ON HOLDER |
| STYLE DESIGNATOR | ROUND FRAME, ROUND LENS TYPE |
| SURFACE TREATMENT | ANODIZE BODY |
| TERMINAL TYPE AND QUANTITY | 3 SOLDER LUG |
| TRANSMITTED LIGHT COLOR | RED SINGLE LIGHT 1ST POSITION HORIZONTAL FULL DISPLAY DIVISION A |
