Aviation Parts Coaxial Cables 5026D5314-0 Conductor Strand 19 Strands / 38 AWG

Product Details

Model Number: 5026D5314-0

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Series:
CHEMINAX
Package:
Bulk
Cable Type:
Triaxial
Wire Gauge:
26 AWG
Conductor Strand:
19 Strands / 38 AWG
Jacket (Insulation) Material:
Thermorad® S
Jacket (Insulation) Diameter:
0.130" (3.30mm)
Conductor Material:
Copper Alloy, Silver Coated
Dielectric Material:
Polyethylene (PE)
Dielectric Diameter:
0.048" (1.22mm)
Series:
CHEMINAX
Package:
Bulk
Cable Type:
Triaxial
Wire Gauge:
26 AWG
Conductor Strand:
19 Strands / 38 AWG
Jacket (Insulation) Material:
Thermorad® S
Jacket (Insulation) Diameter:
0.130" (3.30mm)
Conductor Material:
Copper Alloy, Silver Coated
Dielectric Material:
Polyethylene (PE)
Dielectric Diameter:
0.048" (1.22mm)

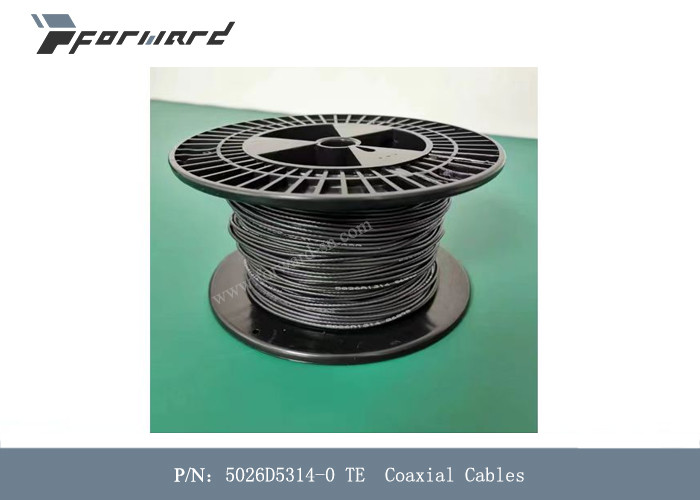

Aviation Parts Coaxial Cables 5026D5314-0 Conductor Strand 19 Strands / 38 AWG

Aviation Parts Coaxial Cables 5026D5314-0 Conductor Strand 19 Strands / 38 AWG





Descriptions of Aviation Parts:



Cheminax controlled electrical cables are used in the aircraft and aerospace industries. They have a wide range of applications in missiles, avionics, radiofrequency and microwave systems, computers, security and surveillance systems, and communications



Features of Aviation Parts:

  • Light weight, small size
  • Temperature range of -65°C to 200°C [-85°F to 392°F]
  • Low capacitance and attenuation
  • High velocity of propagation
  • High flexibility

Specifications of Aviation Parts:





TYPE DESCRIPTION
Category

Cables, Wires

Coaxial Cables (RF)

Series CHEMINAX
Package Bulk
Product Status Active
Cable Type Triaxial
Cable Group -
Wire Gauge 26 AWG
Conductor Strand 19 Strands / 38 AWG
Jacket (Insulation) Material Thermorad® S
Jacket (Insulation) Diameter 0.130" (3.30mm)
Shield Type Double Braid
Impedance 50 Ohms
Length -
Jacket Color Black
Usage -
Features -
Conductor Material Copper Alloy, Silver Coated
Dielectric Material Polyethylene (PE)
Dielectric Diameter 0.048" (1.22mm)
Shield Material Copper, Silver Coated
Shield Coverage 90%
VoP, Velocity of Propagation 77
Operating Temperature -
Base Product Number 5026
