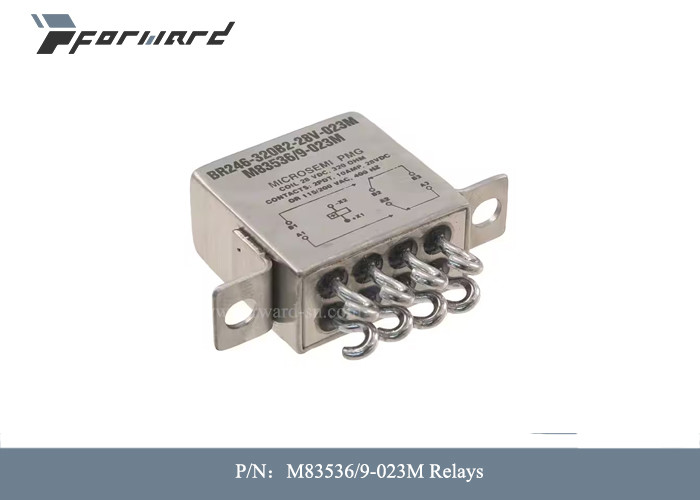

Aviation Parts M83536/9-023M Relays Contact Termination Solder Hook

Product Details

Brand Name: TE Connectivity / Raychem

Model Number: M83536/9-023M Relays

Payment & Shipping Terms

Price: Negotiable

Packaging Details: boxes

Delivery Time: 12-14 weeks

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Type::
Mid Range Relay
Contact Termination:
Solder Hook
Relay Contact Form:
2 Form C (DPDT-NO, NC)
Contact Current Rating:
10 A
Coil Voltage:
28 VDC
Coil Resistance:
320 Ohms
Switching Voltage:
115 VAC, 28 VDC
Length:
26.04 Mm
Width:
13.34 Mm
Unit Weight:
1.885790 Oz
Type::
Mid Range Relay
Contact Termination:
Solder Hook
Relay Contact Form:
2 Form C (DPDT-NO, NC)
Contact Current Rating:
10 A
Coil Voltage:
28 VDC
Coil Resistance:
320 Ohms
Switching Voltage:
115 VAC, 28 VDC
Length:
26.04 Mm
Width:
13.34 Mm
Unit Weight:
1.885790 Oz
Aviation Parts M83536/9-023M Relays Contact Termination Solder Hook

Aviation Parts M83536/9-023M Relays Contact Termination Solder Hook





Descriptions of Aviation Parts:



TE Connectivity's (TE) broad range of relays and contactors serve a variety of applications. The TE product line includes leading brands such as AGASTAT, AXICOM, CII, KILOVAC, OEG, P&B, PRODUCTS UNLIMITED, and SCHRACK. Switching capabilities range from dry circuit to 1600A, up to 70kV, and as high as 6GHz. Electromechanical, solid-state, and hybrid types range from SMT PC board-mount devices to large panel-mount units. TE's line of relays features expansive sets of options for enclosures, terminations, inputs, contact arrangements, and ratings. High-performance types are specifically designed to operate in rigorous environments (shock, vibration, temperature, altitude) such as those encountered in military and aerospace applications..



Features of Aviation Parts:

  • FCA 10 -25 Amp Relay Series
  • DC Actuating System
  • Coil - Rated Voltage = 28 VDC
  • Coil Resistance = 320
  • Contact Arrangement = 2 Form C, DPDT, 2 C/O



Specifications of Aviation Parts:



Product Attribute Attribute Value
Manufacturer: TE Connectivity
Product Category: Industrial Relays
RoHS: N
Mounting Style: Flange Mount
Product: Military/Aerospace Relays
Type: Mid Range Relay
Contact Termination: Solder Hook
Relay Contact Form: 2 Form C (DPDT-NO, NC)
Contact Current Rating: 10 A
Coil Termination: Solder Hook
Coil Type: Non-Latching
Coil Voltage: 28 VDC
Coil Resistance: 320 Ohms
Switching Voltage: 115 VAC, 28 VDC
Contact Material: Silver Cadmium Oxide (AgCdO)
IP Rating: -
Series: FCA-210
Length: 26.04 mm
Width: 13.34 mm
Brand: TE Connectivity / Raychem
Contact Form: DPDT (2 Form C)
Product Type: Industrial Relays
Factory Pack Quantity: 1
Subcategory: Relays
Tradename: M83536
Part # Aliases: FCA-210-0923M 9-1617748-8
Unit Weight: 1.885790 oz
