Ethylene Tetrafluoroethylene Insulated 55A0811 Series Hook Up Wire For Aviation Parts
| Model Number | 55A0811-20-9 |
|---|---|
| Price | Negotiable |
| Packaging Details | boxes |
| Delivery Time | 12-14 weeks |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Type | Hook-up Wire | Wire Gauge - AWG | 20 AWG |
|---|---|---|---|
| Jacket Color | White | Cable Length | 1 Ft |
| Stranding | 19 X 32 | Insulation Material | Ethylene Tetrafluoroethylene (ETFE), Radiation Cross Linked |
| Voltage Rating | 600 V | Type | Spec 55 |
| Conductor Material | + 150 C | Series | 55A0811 |
| Highlight | 55A0811 Series Hook up Wire,Aviation Parts Hook up Wire,Ethylene Tetrafluoroethylene Insulated Hook up Wire |
||
Product Description

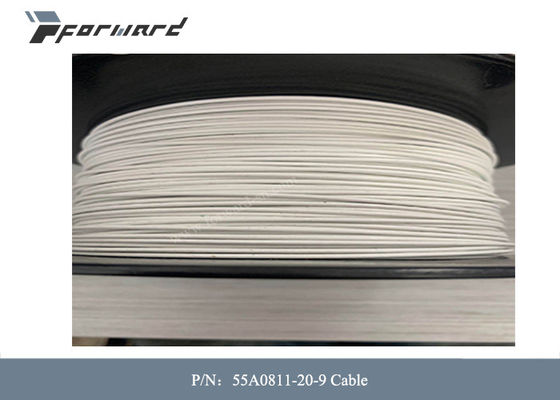

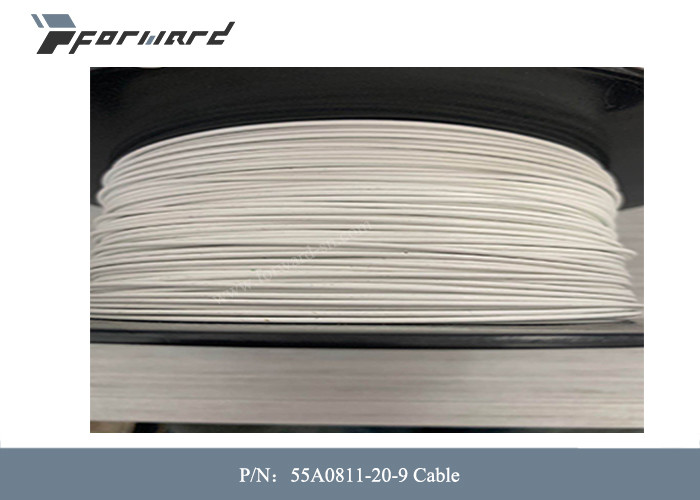

Aviation Parts Cable 55A0811-20-9 Product Type: Hook-up Wire
Descriptions of Aviation Parts:
Hook Up Wire, Spec 55, 600V Voltage Rating, Tin-Coated Copper, 20 AWG Wire Size, Operating Temperature Range -65 – 150 °C
Features of Aviation Parts:
TE Internal #: 2180143008
TE Internal Description: 55A0811-20-9
Alias #: 1-1191592-2 41CAB55A0811209-M
Cable Type : Spec 55
Voltage Rating (V): 600
Wire & Cable Insulation Material : Modified Radiation Cross-linked ETFE Polymer
Conductor Material : Tin-Coated Copper
Wire Size (AWG): 20
Specifications of Aviation Parts:
| Product Attribute | Attribute Value |
| Product Category: | Hook-up Wire |
| RoHS: | Details |
| Product Type: | Hook-up Wire |
| Wire Gauge - AWG: | 20 AWG |
| Jacket Color: | White |
| Cable Length: | 1 ft |
| Stranding: | 19 x 32 |
| Insulation Material: | Ethylene Tetrafluoroethylene (ETFE), Radiation Cross Linked |
| Voltage Rating: | 600 V |
| Type: | Spec 55 |
| Conductor Material: | Tinned Copper |
| Maximum Temperature: | + 150 C |
| Series: | 55A0811 |
| Packaging: | Spool |
| Factory Pack Quantity: | 1 |
| Part # Aliases: | 218014-010 |
| Unit Weight: | 0.035274 oz |
