Electro Optical Pod with Positional Accuracy ≤30m Extended Range ≥1.2km and Angular Position Accuracy ≤0.3°
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Average Power | Consumption≤12W, Maximum≤20W | Maximum Range | ≥1.2km |
|---|---|---|---|
| Laser Ranging | 30~2000m | Operating Temperature | -20℃～+60℃ |
| Size | 130mm×120mm×180mm | Ranging Accuracy | ≤2m |
| Angular Position Accuracy | ≤0.3° | Voltage | 12V |
| Highlight | Positional Accuracy ≤30m Electro Optical Pod,Extended Range ≥1.2km Optical Surveillance Pod,Angular Position Accuracy ≤0.3° Targeting Pod |
||
Product Description

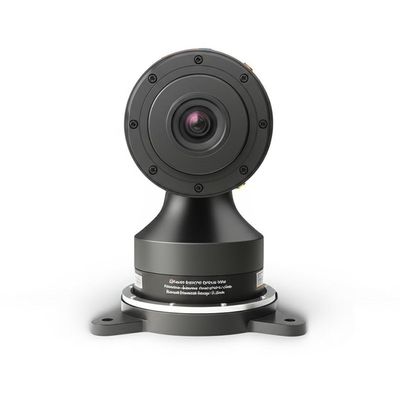

Accurate Electro Optical Pod with Positional Accuracy ≤30m 300m and Extended Range ≥1.2km
Product Overview
The Electro Optical Pod is a cutting-edge surveillance and targeting system offering exceptional precision and performance for various mission requirements. With its extended operational range and high accuracy, this system provides reliable intelligence gathering and target engagement capabilities.
Key Features
- Extended operational range: ≥1.2km
- High angular position accuracy: ≤0.3°
- Compact dimensions: 130mm × 120mm × 180mm
- Low power consumption: ≤12W average, ≤20W maximum
- Wide heading range: +90° to -90°
- Versatile power interface: 14~28V
- High-performance laser: ≥25mJ energy
Technical Specifications
| Parameter | Specification |
|---|---|
| Weight | ≤16000g |
| Laser Energy | ≥25mJ |
| IR Type | Uncooled LWIR |
| Ranging Accuracy | ≤2m |
| Angular Position Accuracy | ≤0.3° |
| Heading Range | +90° to -90° |
| Roll Range | -30° to +30° |
| Power Consumption | Average ≤12W, Maximum ≤20W |
Applications
This advanced electro-optical system is ideal for:
- Military surveillance and reconnaissance
- Border security operations
- Search and rescue missions
- Law enforcement surveillance
- Target acquisition and tracking
Customization Options
The Electro Optical Pod can be customized to meet specific operational requirements, including:
- Angular position accuracy: ≤0.3°
- Roll range: -30° to +30°
- Maximum range: ≥1.2km
- Laser energy: ≥25mJ
- Ranging accuracy: ≤2m
Support & Services
- On-site installation and training
- 24/7 technical support
- Software updates and maintenance
- Repair and replacement services
- Performance optimization
Package Contents
- Electro Optical Pod unit
- User manual
- Power adapter
- Mounting hardware
Shipping Information
Standard delivery with estimated arrival in 5-7 business days. Shipping costs calculated at checkout.
