Weight ≤365g 100deg/S Electro Optical Pod Visible Laser Drone Pods

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: Eagle-eye360 Infrared 、visible & laser Pod

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Supply Ability: 500 pcs/years

Get Best Price
Highlight:

365g Electro Optical Pod

,

100deg/s Electro Optical Pod

,

365g drone pods

Type:
Gyrostabilization
Weight:
≤365g
Platform Type:
Triaxial
Heading:
N×360°
Pitch:
-90°~+90°
Roll:
-50°~+50°
Maximum Angular:
≥100°/ S
Maximum Angular Acceleration:
≥90°/ S2
Angular Position Accuracy:
≤0.1°
Operating Temperature:
-40℃~+60℃
Type:
Gyrostabilization
Weight:
≤365g
Platform Type:
Triaxial
Heading:
N×360°
Pitch:
-90°~+90°
Roll:
-50°~+50°
Maximum Angular:
≥100°/ S
Maximum Angular Acceleration:
≥90°/ S2
Angular Position Accuracy:
≤0.1°
Operating Temperature:
-40℃~+60℃
Weight ≤365g 100deg/S Electro Optical Pod Visible Laser Drone Pods

Electro Optical Pod Eagle-eye360 Infrared ,visible & laser pod Weight ≤365g



Descriptions of Electro Optical Pod:



Eagle-eye360 electro optical pod is equipped with visible light TV, cooling infrared thermal imager and laser range finder. It has the characteristics of good stability, good observation effect, general purpose and high reliability. It can be used to perform tasks such as target search, capture, identification and tracking, and is suitable for various aircraft and vehicle platforms.



Features of Electro Optical Pod:

  • Quick-release structure design, easy to quickly replace the load with one hand
  • Extremely light and small, weight ≤365g²
  • Support full range of heading (360°) rotation²
  • With target recognition, target tracking, image compression and other functions²
  • Wide voltage 14~28V input, dynamic power consumption control²



Specifications of Electro Optical Pod:



Parameter Eagle-eye360
Description Type gyrostabilization
Weight ≤365g
Feature Platform type triaxial
Heading n×360°
Pitch -90°~+90°
Roll -50°~+50°
Maximum Angular ≥100°/ s
Maximum Angular Acceleration ≥90°/ s2
Angular Position Accuracy ≤0.1°
Visible Light Resolution LFOV 1920×1080 @60fps
SLOV
FOV LFOV 52.8°×31.2° (5.6mm)
SLOV 9.1°×5.1° (35mm)
Tracking Module Tracking Velocity ±48 Pixel/frame
Laser Ranging Measuring Range ≥3km
Accuracy ±1m
Interface Control Interface RS232/ network TCP
TV-out network
Power Supply Voltage 14~28V
Power Average≤10W ,Max≤20W
Environmental Operating Temperature -20℃~+60℃
Storage Temperature -40℃~+60℃

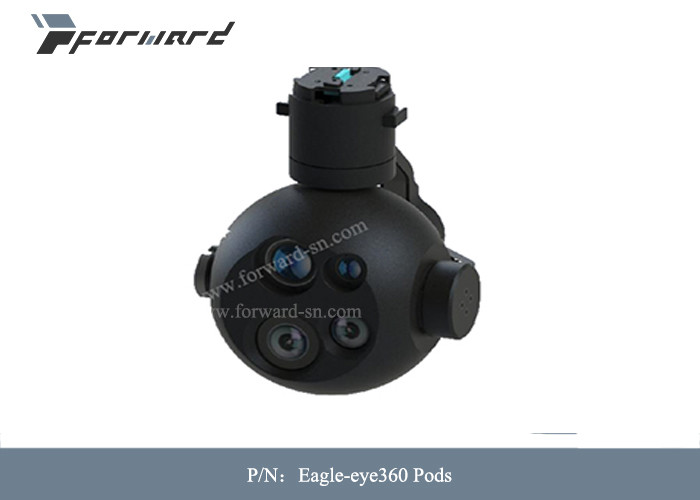

Weight ≤365g 100deg/S Electro Optical Pod Visible Laser Drone Pods 0
