UAV Electro Optical Gimbal Thermal Camera Micro Pod Dimensionsion Accuracy 77×78×83 Mm

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: Eagle-Eye80

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiatable

Packaging Details: boxes

Delivery Time: 5-8 weeks

Payment Terms: L/C, T/T

Supply Ability: 500 pcs/years

Get Best Price
Highlight:

UAV gimbal thermal camera

,

280g gimbal thermal camera

,

28V UAV Camera Pods

Type:
Gyrostabilization
Weight:
≤280g
Platform Type:
Triaxial
Heading:
+90°~-90°
Pitch:
+30°~-120°
Power Interface:
14~28V
Control Interface:
232 Serial Port
Average Power:
Consumption≤12W, Maximum≤20W
Dimensionsion Accuracy:
77×78×83 Mm
Operating Temperature:
-40℃~+60℃
Type:
Gyrostabilization
Weight:
≤280g
Platform Type:
Triaxial
Heading:
+90°~-90°
Pitch:
+30°~-120°
Power Interface:
14~28V
Control Interface:
232 Serial Port
Average Power:
Consumption≤12W, Maximum≤20W
Dimensionsion Accuracy:
77×78×83 Mm
Operating Temperature:
-40℃~+60℃
UAV Electro Optical Gimbal Thermal Camera Micro Pod Dimensionsion Accuracy 77×78×83 Mm

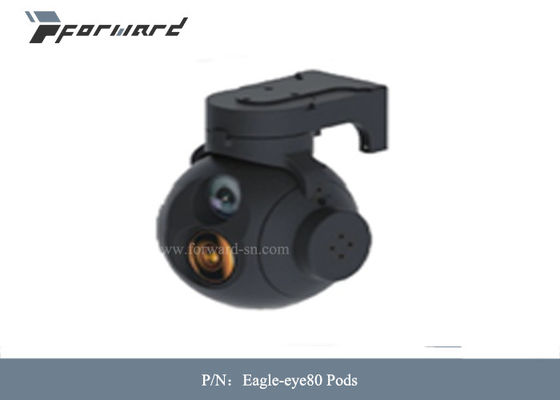

Electro Optical Pod Eagle-Eye80 Micro Pod Dimensionsion Accuracy 77×78×83 mm



Descriptions of Electro Optical Pod:



The Eagle-eye80 micro-pod uses an 8mm fixed-focus visible light core and an 18mm uncooled thermal imaging camera. In all configurations, the weight is only about 280g. Two axes and two racks are used inside, and high-precision electronic Sub-image stabilization technology can not improve the accuracy, but also increases the reliability of the system. Simultaneously the pods are assembled into a target tracking module block, which can realize real-time positioning and tracking of dynamic targets such as people/vehicles.

Eagle-eye80 is suitable for light unmanned aerial vehicles or small manned aerial vehicles, including imaging guidance systems, helicopters.





Features of Electro Optical Pod:

  • Integrated Visible and Infrared Imaging Modules
  • Visible light module with 8mm lens, infrared thermal imaging module with 18mm lens
  • Built-in tactical three-axis gyroscope with servo image stabilization function
  • With target automatic tracking function
  • Wide voltage 14~28V input, dynamic power consumption control
  • All electronic devices are integrated in metal casings, which meet EMC design specifications
  • With image compression function, support network, synchronous 422 video output



Specifications of Electro Optical Pod:



Visible Light Imaging
Image Sensor Color CMOS
Pixel Size 3.0μm
Resolution and Frame Rate 2560H×1440V @60fps
Lens 8mm
Field of View 51°×30°
Infrared Thermal Imaging
Infrared Detectors uncooled long wave (8μm~14μm)
Pixel Size 12μm
Resolution and Frame Rate 640×512@60fps
Lens 18mm
Field of View 24°×18°
Palette black hot, white hot, false color
Tracking Module
Frame Rate 60Hz
Minimum Target Contrast 5%
Target Size 16*16~128*128 pixel
Tracking Speed ±48 pixel/frame
Range
Visible light recognition distance ≥ 3.6km (vehicle 6.5*3)
Infrared recognition distance ≥ 1km (vehicle 6.5*3)

Electrical Interface
Video output interface

NET: support UDP/RTSP

(Sync 422 optional)

Control interface 232 serial port (422 optional), network
Power interface 14~28V
Average power consumption≤12W, maximum≤20W
Environmental Adaptability
Working temperature -40℃~+60℃
Storage temperature -40℃~+60℃
Structural Design
Heading +90°~-90°
Pitch +30°~-120°
Dimensions 77×78×83 mm
Weight ≤280g
