Home > products > Electro Optical Pod > Gyrostabilization 320g Electro Optical Pod Infrared Pod Heading N×360°

Gyrostabilization 320g Electro Optical Pod Infrared Pod Heading N×360°

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: Eagle-eye320 Infrared pod

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiatable

Packaging Details: boxes

Payment Terms: L/C, T/T

Supply Ability: 500 pcs/years

Get Best Price
Highlight:

gyrostabilization Electro Optical Pod

,

320g Electro Optical Pod

,

infrared pod Heading 360 deg

Type:
Gyrostabilization
Weight:
≤320g
Platform Type:
Triaxial
Heading:
N×360°
Pitch:
-110°~+110°
Roll:
-50°~+50°
Maximum Angular:
≥100°/ S
Maximum Angular Acceleration:
≥90°/ S2
Angular Position Accuracy:
≤0.3°
Operating Temperature:
-20℃~+60℃
Type:
Gyrostabilization
Weight:
≤320g
Platform Type:
Triaxial
Heading:
N×360°
Pitch:
-110°~+110°
Roll:
-50°~+50°
Maximum Angular:
≥100°/ S
Maximum Angular Acceleration:
≥90°/ S2
Angular Position Accuracy:
≤0.3°
Operating Temperature:
-20℃~+60℃
Gyrostabilization 320g Electro Optical Pod Infrared Pod Heading N×360°

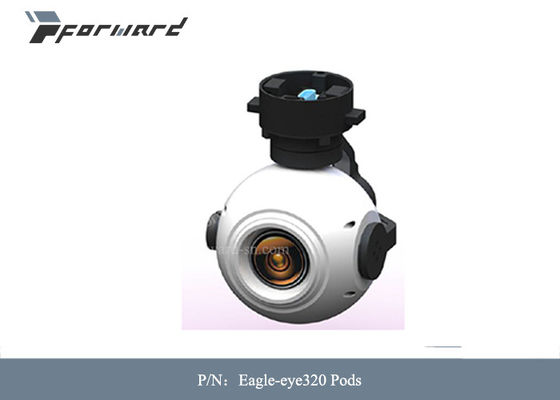

Electro Optical Pod Eagle-eye320 Infrared pod Weight ≤320g Heading n×360°



Descriptions of Electro Optical Pod:



Eagle-eye320 photoelectric pod is equipped with visible light TV, cooling infrared thermal imager and laser range finder. It has the characteristics of good stability, good observation effect, general purpose and high reliability. It can be used to perform tasks such as target search, capture, identification and tracking, and is suitable for various aircraft and vehicle platforms.



Features of Electro Optical Pod:

  • Quick-release structure design, easy to quickly replace the load with one hand
  • Extremely light and small, weight ≤320g²
  • Support full range of heading (360°) rotation²
  • Long infrared recognition distance, ≥1.6km (vehicle)²



Specifications of Electro Optical Pod:



Parameter Eagle-eye320
Description Type gyrostabilization
Weight ≤320g
Feature Platform type triaxial
Heading n×360°
Pitch -110°~+110°
Roll -50°~+50°
Maximum Angular ≥100°/ s
Maximum Angular Acceleration ≥90°/ s2
Angular Position Accuracy ≤0.3°
Infrared Resolution 640×512@60fps
FOV(Focus) 18°×14°
Tracking Module Tracking Velocity ±48 Pixel/frame
Interface Control Interface RS232/ network TCP
TV-out network
Power Supply Voltage 11~16V
Power Average≤10W ,Max≤16W
Environmental Operating Temperature -20℃~+60℃
Storage Temperature -40℃~+60℃
