FW-8318-KV100 1.7A 30V Electric Brushless DC Motor Disc Brushless Motor for drone

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: FW-8318-KV100

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Get Best Price
Highlight:

FW-8318-KV100 Electric Brushless DC Motor

,

1.7A Electric Brushless DC Motor

,

30V disc brushless motor

No-load Current:
1.7A/30V
Motor Weight:
660 G
Maximum Current:
68 A
Box Weight:
930g (110 X 110 X 65 Mm)
Maximum Power:
3224W
Maximum Torque:
6.5 Nm
No-load Current:
1.7A/30V
Motor Weight:
660 G
Maximum Current:
68 A
Box Weight:
930g (110 X 110 X 65 Mm)
Maximum Power:
3224W
Maximum Torque:
6.5 Nm

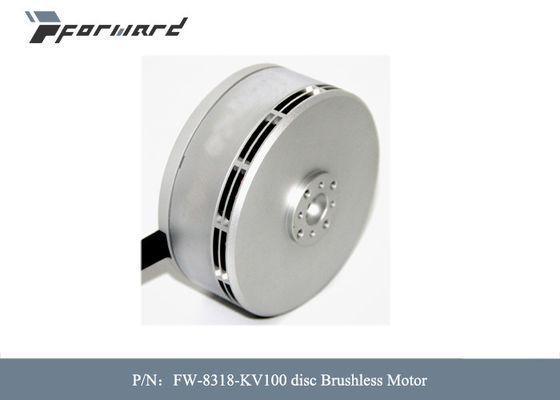

FW-8318-KV100 1.7A 30V Electric Brushless DC Motor Disc Brushless Motor for drone

FW-8318-KV100 disc Brushless Motor for Drone

Description of Electric Brushless DC Motor for Drone:



       The FW-8318-KV100 disc Brushless Motordisc brushless motor is applied to a single shaft with a load of 5000~10000g, equipped with a 30-inch propeller, and the maximum thrust can reach a single shaft of 14kg. The weight of the motor is only 660g, which is suitable for professional drones such as high-end aerial photography, exploration, archaeology, agricultural plant protection, and remote sensing mapping. IP35 dustproof and waterproof protection, using extremely durable bearings, more stable rotation, more drop-resistant, unique mechanism design provides you with better security

Feature of Electric Brushless DC Motor for Drone:



  • Designed for industrial and agricultural applications
  • Unique motor structure design
  • Maximum hollow design, ultra-light weight
  • Open design for maximum heat dissipation
  • Standardized motor mounting holes, strong versatility, suitable for various rack installations
  • Using extremely durable and high-quality imported bearings, the rotation is more stable and more resistant to falling

Specifications of Electric Brushless DC Motor for drone:



Item Parameters
KV value 100KV
No-load current 1.7A/30V
Motor weight 660 g
Maximum current 68 A
Maximum thrust 16.2 kg
The recommended take-off weight of the whole aircraft 12S-30”/ 4axis 22kg, 6 axis 33kg, 8 axis 44kg
Rated voltage 12S
Internal resistance between phases 61mΩ
Box weight 930g (110 x 110 x 65 mm)
Maximum power 3224W
Maximum torque 6.5 Nm
propeller recommendation 30x10.0,32x9.6,32*10.5

Single-axis take-off weight recommendation

4.5kg ~ 6.5kg
