FW-M90-KV9000 Electric Brushless DC Motor Frameless 1.44A 40V for Drone

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: FW-M90-KV9000

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Get Best Price
Highlight:

FW-M90-KV9000 Electric Brushless DC Motor

,

Electric Brushless DC Motor 1.44A

,

frameless brushless dc motor 40V

No-load Current:
1.44A/40V
Motor Weight:
12.7kg
Maximum Current:
123.3A
Maximum Power:
54.2kW
Maximum Torque:
167.3 Nm
Maximum Thrust:
214kg
No-load Current:
1.44A/40V
Motor Weight:
12.7kg
Maximum Current:
123.3A
Maximum Power:
54.2kW
Maximum Torque:
167.3 Nm
Maximum Thrust:
214kg
FW-M90-KV9000 Electric Brushless DC Motor Frameless 1.44A 40V for Drone

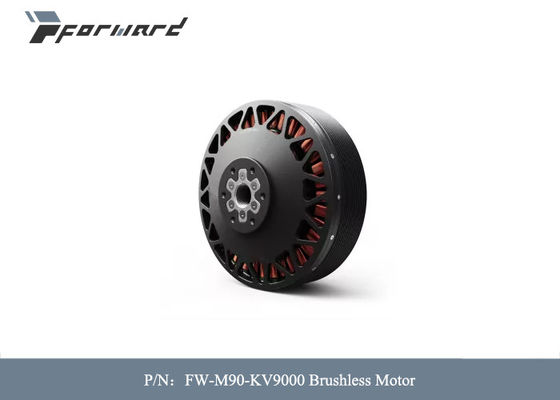

FW-M90-KV9000 Brushless Motor for Drone

Description of Electric Brushless DC Motor for Drone:

     The weight of the FW-M90-KV9000 Brushless Motor is only 12.7kg, which is suitable for professional drones such as high-end aerial photography, exploration, archaeology, agricultural plant protection, and remote sensing mapping. IP35 dustproof and waterproof protection, using extremely durable bearings, more stable rotation, more drop-resistant, unique mechanism design provides you with better security



Feature of Electric Brushless DC Motor for Drone:

  • Designed for professional aerial photography, surveying, mapping, exploration and other long flight time, 100S voltage
  • Maximum hollow design, ultra-light weight, fast heat dissipation
  • Unique motor core design
  • Using 7075-T6 aviation aluminum, the strength is higher, providing you with better safety assurance
  • Through the simulation of magnetic flux density and magnetic inclusion, the motor has low energy consumption and high efficiency
  • Using durable and high-quality SKF imported bearings, the rotation is more stable and more resistant to falling
  • Using high-performance high-temperature-resistant arc-shaped magnets, the performance is improved by 5%



Specifications of Electric Brushless DC Motor for Drone:

Item Parameters
KV value 9000KV
No-load current 1.44A/40V
Motor weight 12.7kg
Maximum current 123.3A
Maximum thrust 214kg
Support lithium battery 100S
Resistance 140.5mΩ
Maximum torque 167.3 Nm
Maximum power 54.2kW
