FW-8318-KV100 630g High Torque Brushless Dc Motor Three Phase for Drone

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: FW-8318-KV100 Pro

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Get Best Price
Highlight:

630g high torque brushless dc motor

,

3300W high torque brushless dc motor

,

3.3kw three phase brushless dc motor

No-load Current:
1.4
Motor Weight:
630 G
Maximum Current:
68 A
Box Weight:
865 (150 X 150 X 65 Mm)
Maximum Power:
3300W
Maximum Thrust:
19490g
No-load Current:
1.4
Motor Weight:
630 G
Maximum Current:
68 A
Box Weight:
865 (150 X 150 X 65 Mm)
Maximum Power:
3300W
Maximum Thrust:
19490g
FW-8318-KV100 630g High Torque Brushless Dc Motor Three Phase for Drone

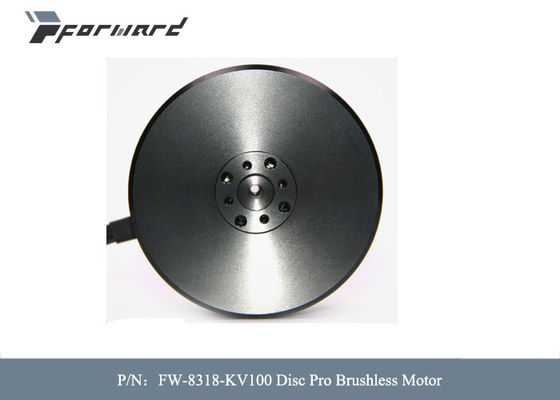

FW-8318-KV100 Disc  Pro Brushless Motor for Drone

Description of Electric Brushless DC Motor for Drone:



       The FW-8318-KV100 Disc Pro Brushless Motordisc brushless motor for drone is applied to a single shaft with a load of 8000~12000g, equipped with a 28~32-inch propeller, and the maximum thrust can reach a single shaft of 19kg. The weight of the motor is only 630g,Designed for professional plant protection and industrial applications, the multi-rotor UAV brushless motor provides power support for various applications with super pulling force, light weight, high efficiency and excellent reliability.

Feature of Electric Brushless DC Motor for Drone:



  • Designed for industrial and agricultural applications
  • Unique motor structure design
  • Maximum hollow design, ultra-light weight
  • Open design for maximum heat dissipation
  • Standardized motor mounting holes, strong versatility, suitable for various rack installations
  • Using extremely durable and high-quality imported bearings, the rotation is more stable and more resistant to falling

Specifications of Electric Brushless DC Motor for Drone:



Item Parameters
KV value 100KV
No-load current 1.4A
Motor weight 630 g
Maximum current 68 A
Maximum thrust 19490g

Support lithium battery

12S
Resistance  38mΩ
Box weight 865 (150 x 150 x 65 mm)
Maximum power 3300W

Protection level

IPE35
