FW-M25-KV100 3 Phase Brushless Dc Motor Controller 20V for Drone

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: FW-M25-KV100

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Get Best Price
Highlight:

3 phase brushless dc motor controller

,

3 phase brushless dc motor controller

,

20V types of brushless dc motor

No-load Current:
0.6A/20V
Motor Weight:
1280g
Maximum Current:
230.3A
Box Weight:
1402g (200 X 150 X 70 Mm)
Maximum Power:
10878W
Maximum Thrust:
39.4kg
No-load Current:
0.6A/20V
Motor Weight:
1280g
Maximum Current:
230.3A
Box Weight:
1402g (200 X 150 X 70 Mm)
Maximum Power:
10878W
Maximum Thrust:
39.4kg
FW-M25-KV100 3 Phase Brushless Dc Motor Controller 20V for Drone

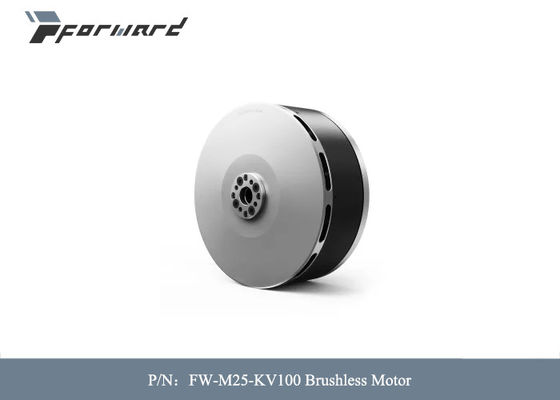

FW-M25-KV100 Brushless Motor for Drone

Electric Brushless DC MotorFW-M25-KV100 Brushless Motor for Drone

Description of Electric Brushless DC Motor for Drone:

       The weight of the FW-M25-KV100 Brushless Motor for drone is only 1280g, which is suitable for professional drones such as high-end aerial photography, exploration, archaeology, agricultural plant protection, and remote sensing mapping. IP35 dustproof and waterproof protection, using extremely durable bearings, more stable rotation, more drop-resistant, unique mechanism design provides you with better security



Feature of Electric Brushless DC Motor for drone:

  • Designed for professional aerial photography, surveying, mapping, exploration and other long flight time, 12~14S voltage
  • Maximum hollow design, ultra-light weight, fast heat dissipation
  • Unique motor core design
  • Using 7075-T6 aviation aluminum, the strength is higher, providing you with better safety assurance
  • Through the simulation of magnetic flux density and magnetic inclusion, the motor has low energy consumption and high efficiency
  • Using durable and high-quality EZO imported bearings, the rotation is more stable and more resistant to falling
  • Using high-performance high-temperature-resistant arc-shaped magnets, the performance is improved by 5%



Specifications of Electric Brushless DC Motor for drone:

Item Parameters
KV value 100KV
No-load current 4.3A/30V
Motor weight 1280g
Maximum current 230.3A
Maximum thrust 39.4kg
Support lithium battery 12S
Resistance 16.7mΩ
Box weight 1402g (200 x 150 x 70 mm)
Maximum power 10878W
