M40II Electric High Power Brushless Dc Motor Rpm For Prop 197.2 Amps for Drone

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: M40II Motor Electric Brushless DC Motor for Drone

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiatable

Packaging Details: Boxes

Get Best Price
Highlight:

M40II Electric brushless dc motor rpm

,

98V brushless dc motor rpm

,

high power brushless dc motor 197.2Amps

Prop:
MAD 47×13.1 PROP
Volte:
98V
Throttle:
100%
Amps:
197.2
Thrust:
69047
RPM:
3872 RPM/Min
Watte:
19325.6 W
Efficiency:
3.6g/w
Environment Temperature:
30 ℃
Test Temperature:
120℃
Prop:
MAD 47×13.1 PROP
Volte:
98V
Throttle:
100%
Amps:
197.2
Thrust:
69047
RPM:
3872 RPM/Min
Watte:
19325.6 W
Efficiency:
3.6g/w
Environment Temperature:
30 ℃
Test Temperature:
120℃

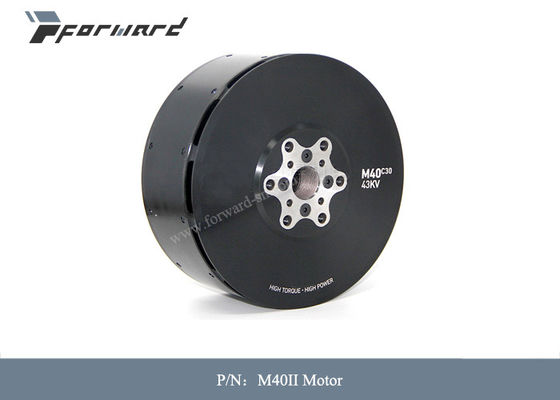

M40II Electric High Power Brushless Dc Motor Rpm For Prop 197.2 Amps for Drone

Motor high power M40II Electric Brushless DC Motor for Drone Prop





Descriptions of Electric Brushless DC Motor for Drone prop:

  • Suction cooling mode, extremely low temperature, high efficiency to ensure long working time.
  • High standard strong magnetic for long-term work force does not decay.
  • 99.99% Oxygen-free copper wires assure the high efficiency and quality.
  • CNC processing technique, 100% dynamic balance adjustment before leaving factory
  • Brand new EZO bearings, anti noise and more durable.

Features of Electric Brushless DC Motor for drone prop:

  • 14Pole 12Slot Hi-torque Motor Design
  • CNC Machined 6061 T6 Billet Aluminum Heatsink Can
  • High Purity Copper Windings Maximizes Efficiency
  • High RPM ABEC5 Oversized Bearings
  • Precision balanced rotor,smoothness for best reliability and maximum RPM. single copper wire made
  • Stator - Super Thin (0.2mm) Laminations

Speifications of Electric Brushless DC Motor for drone prop:



Prop(inch) MAD 47×13.1 PROP
Volte(V) 98
Throttle 40% 70% 100%
Amps(A) 14.97 74.44 197.2
Thrust(g) 13440 37937 69047
RPM(RPM/Min) 1738 2897 3872
Watte(W) 1467.1 7295.1 19325.6
Efficiency(g/w) 9.2 5.2 3.6
Environment Temperature(℃) 30
Motor Temperature(℃) 120





M40II Electric High Power Brushless Dc Motor Rpm For Prop 197.2 Amps for Drone 0
