Aviation Parts D-436-36 Butt Splice Terminal Solder Sleeves & Shield Tubing

Product Details

Model Number: D-436-36

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Material::
Polyvinylidene Fluoride (PVDF)
Length::
27.94 Mm
Maximum Temperature::
+ 135 C
Series::
D-436
Chemical Resistant::
No
Product Type::
Solder Sleeves & Shield Tubing
Factory Pack Quantity::
100
Subcategory::
Wire & Cable Management
Part # Aliases::
650074-000
Unit Weight::
0.016826 Oz
Material::
Polyvinylidene Fluoride (PVDF)
Length::
27.94 Mm
Maximum Temperature::
+ 135 C
Series::
D-436
Chemical Resistant::
No
Product Type::
Solder Sleeves & Shield Tubing
Factory Pack Quantity::
100
Subcategory::
Wire & Cable Management
Part # Aliases::
650074-000
Unit Weight::
0.016826 Oz
Aviation Parts D-436-36 Butt Splice Terminal Solder Sleeves & Shield Tubing

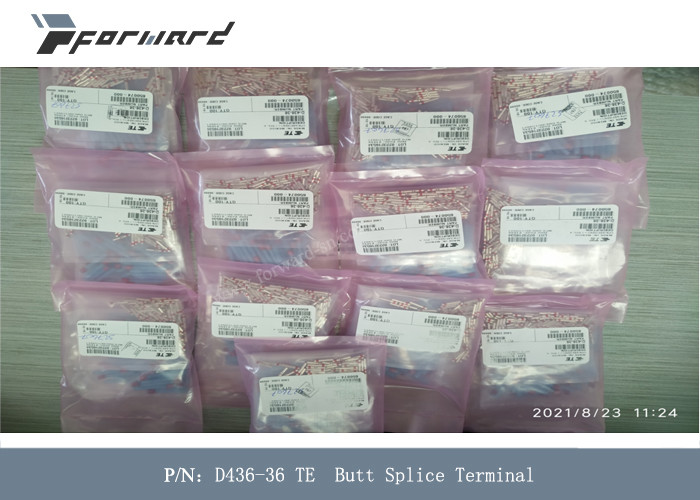

Aviation Parts D-436-36 Butt Splice Terminal Solder Sleeves & Shield Tubing





Descriptions of Aviation Parts:

  • MIL Specification [MIL-S-81824]
  • Splice Type = Butt [in-line]
  • Silver Wire Material, Tin Wire Material
  • Crimp Barrel Size = 304 - 1510 CMA
  • Side 1 Max. # of Wires = 2

Features of Aviation Parts:

  • Splice Type = Butt [in-line]
  • Wire Material = Silver, Tin
  • Connection Type = Crimp
  • Color Code = Red
  • Crimp Barrel Size (CMA [mm²]) = 304 – 1510 [0.15 – 0.75]
  • Crimp Barrel Plating = Tin
  • MIL Specification [MIL-S-81824] = Yes
  • Side 1 Max. # of Wires = 2
  • Side 2 Max. # of Wires = 2
  • Side 1 Sealing Insert I.D. (mm [in]) = 2.16 [0.085]
  • Side 2 Sealing Insert I.D. (mm [in]) = 2.16 [0.085]



Specifications of Aviaiton Parts:



Product Attribute Attribute Value
Product Category: Solder Sleeves & Shield Tubing
RoHS: Details
Type: Splice
Material: Polyvinylidene Fluoride (PVDF)
Length: 27.94 mm
Maximum Temperature: + 135 C
Series: D-436
Chemical Resistant: No
Product Type: Solder Sleeves & Shield Tubing
Factory Pack Quantity: 100
Subcategory: Wire & Cable Management
Part # Aliases: 650074-000
Unit Weight: 0.016826 oz
