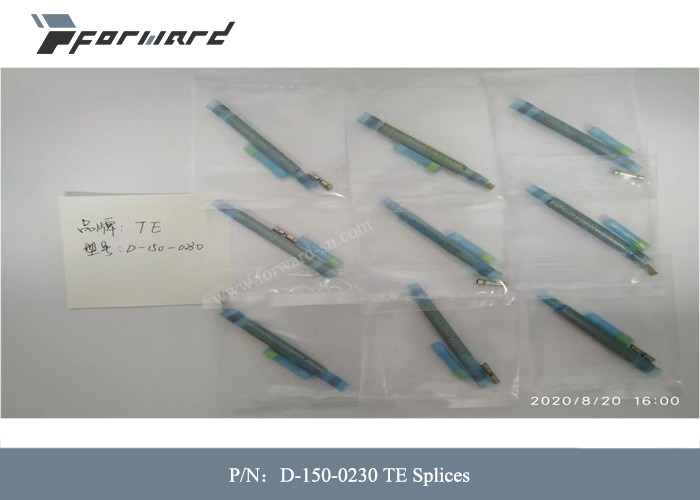

Aviation Parts D-150-0230 Splices Solder Sleeves & Shield Tubing

Product Details

Model Number: D-150-0230

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Payment Terms: L/C, T/T

Get Best Price
Highlight:
Product Category::
Solder Sleeves & Shield Tubing
RoHS::
N
Type::
Shield Splice Kit
Material::
Polyvinylidene Fluoride (PVDF)
Maximum Temperature::
+ 150 C
Series::
D-150
Packaging::
Bulk
Product Type::
Solder Sleeves & Shield Tubing
Factory Pack Quantity::
10
Part # Aliases::
289421-000
Product Category::
Solder Sleeves & Shield Tubing
RoHS::
N
Type::
Shield Splice Kit
Material::
Polyvinylidene Fluoride (PVDF)
Maximum Temperature::
+ 150 C
Series::
D-150
Packaging::
Bulk
Product Type::
Solder Sleeves & Shield Tubing
Factory Pack Quantity::
10
Part # Aliases::
289421-000
Aviation Parts D-150-0230 Splices Solder Sleeves & Shield Tubing

Aviation Parts D-150-0230 Splices Solder Sleeves & Shield Tubing





Descriptions of Aviation Parts:



TE Connectivity's Cold Applied Splices are in-line, sealed, crimp splices designed for 150⁰C applications. Developed for high temperature applications in the aerospace and defense industry, the cold applied splices from TE are small, lightweight, and immersion resistant. The cold applied splices meet the requirements of SAE-AS81824/1 and feature a transparent fluoropolymer outer sleeve with a new high-performance, flame-retardant clear gel that provides environmental protection, strain relief, sealing to un-etched wire insulations, and an inspectable termination.



Features of Aviation Parts:

  • Immersion resistant in-line splice on 1:1 wires
  • Protects and seals all conventional MIL spec and commercial wire insulation systems
  • Nickel-plated, silver-plated, and tin-plated conductors
  • One-step termination and environmental protection
  • No heating required for installation— safe for use on fueled aircraft
  • Easy installation and application flexibility
  • Prevents water ingress under permanent pressure/weight
  • Achieves environmental performance while maintaining
  • Small profile
  • Electrical performance
  • Meets or exceeds
  • SAE-AMS-DTL-23053/8 (Insulation sleeve)
  • SAE-AS81824/12
  • Under qualification for SAE AS81824 and AS81824/12



Specifications of Aviation Parts:



Product Attribute Attribute Value
Product Category: Solder Sleeves & Shield Tubing
RoHS: N
Type: Shield Splice Kit
Material: Polyvinylidene Fluoride (PVDF)
Maximum Temperature: + 150 C
Series: D-150
Packaging: Bulk
Product Type: Solder Sleeves & Shield Tubing
Factory Pack Quantity: 10
Subcategory: Wire & Cable Management
Part # Aliases: 289421-000
