3500B Electro Optical Pod Weight 3500g Drone Camera With Heat Sensor

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: Eagle-eye3500B Electro Optical Pod

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiatable

Packaging Details: boxes

Delivery Time: 5-8 weeks

Payment Terms: L/C, T/T

Supply Ability: 500 pcs/years

Get Best Price
Highlight:

3500B Electro Optical Pod

,

NX360 deg Electro Optical Pod

,

3500g drone camera with heat sensor

Type:
Gyrostabilization
Weight:
≤3500g
Heading:
NX360°
Pitch:
+10°~-110°
Angular Position Accuracy:
≤0.1°
Dimensions:
φ184mm×272.9mm
Operating Temperature:
-20℃~+55℃
Laser Ranging:
30~2000m
Type:
Gyrostabilization
Weight:
≤3500g
Heading:
NX360°
Pitch:
+10°~-110°
Angular Position Accuracy:
≤0.1°
Dimensions:
φ184mm×272.9mm
Operating Temperature:
-20℃~+55℃
Laser Ranging:
30~2000m
3500B Electro Optical Pod Weight 3500g Drone Camera With Heat Sensor

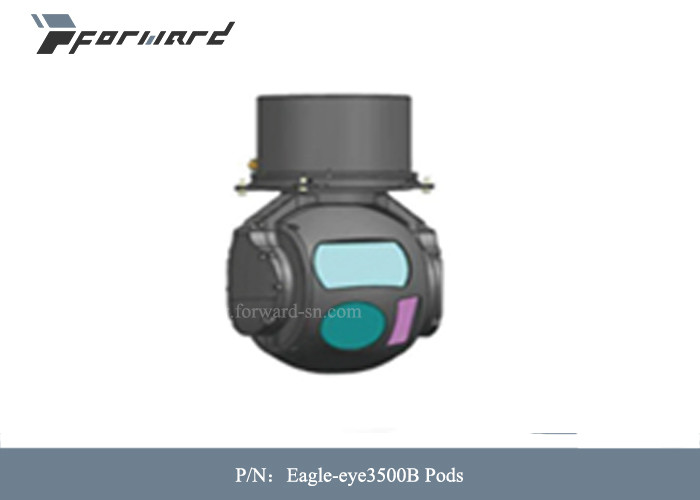

Electro Optical Pod Eagle-eye 3500B Electro Optical Pod Weight ≤3500g





Descriptions of Electro Optical Pod:



Eagle-eye3500B photoelectric pod is equipped with three sensors of visible light TV, uncooled thermal imaging camera and laser range finder, and has the functions of day and night reconnaissance, target ranging and target positioning. The pod is a two-axis stable structure with 360° continuous rotation and gyro stabilization function, which is suitable for small drones to search for targets, monitor and shoot and other fields.



Features of Electro Optical Pod:

  • High-precision boresight stabilization function;
  • Has visible light and infrared reconnaissance functions;
  • With laser ranging function;
  • With manual mode, lock mode, scan mode and automatic tracking modes;
  • It has the function of completing target positioning and geographic guidance according to the carrier information;
  • Multi-target detection and prompt function;
  • With video storage and image enhancement functions;
  • With auto focus function;
  • With picture-in-picture switching;
  • The ground display and control unit can control the movement of the pod body and set the working mode of the sensor;
  • The photoelectric pod should have a self-inspection function and can display the self-inspection results on the ground display and control unit;
  • Superimpose and display the current date, time, longitude, latitude, altitude, speed, pod azimuth and pitch angle information on the real-time video.

Specifications of Electro Optical Pod:



Specification

Type: Gyro Stabilized

Weight: ≤3.5kg

Dimensions: ≤φ184mm×272.9mm

Infrared Thermal Imaging

Resolution 640×512

Working band 8μm ~ 12μm

Field of view 8.7°×7°

Detection distance: ≥3km,

Recognition distance: ≥1km

Features

Two axes (pitch axis: +10°~-110°;

Heading axis: NX360°;

Stable accuracy: 0.1°

Angle measurement accuracy ≤1mrad

Visible Light Imaging

Resolution 1920×1080

Working band 0.4µm~0.7µm

FOV 2.4°×1.35°~58.9°×33.13°

Detection distance: ≥6km

Recognition distance: ≥4km

Laser Ranging


Working wavelength 1.54μm

Ranging range 30m~2000m

Ranging accuracy ≤5m

Tracking module

Tracking accuracy ≤0.6mrad (RMS)

Maximum search angular velocity ≥60°/s

Maximum tracking angular velocity ≥10°/s

External interface

Control interface :

1 way RS422 serial port

1 way RS232 serial port

Video output :

1 channel network digital video output

1 channel HD-SDI video output

Power supply

Voltage: 28 VDC,

Power consumption: ≤50W (average),

≤150W (peak)

Environmental conditions

Working temperature -20℃~+55℃

Storage temperature - 40℃~+65℃
