Home > products > Electro Optical Pod > 160×250mm Electro Optical Infrared Pod Weight ≤3500g Aerial Thermal Cameras

160×250mm Electro Optical Infrared Pod Weight ≤3500g Aerial Thermal Cameras

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: Eagle-eye3500A Electro Optical Pod

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiatable

Packaging Details: boxes

Delivery Time: 5-8 weeks

Payment Terms: L/C, T/T

Supply Ability: 500 pcs/years

Get Best Price
Highlight:

160 × 250mm aerial thermal cameras

,

3500g aerial thermal cameras

,

250mm infrared pod

Type:
Gyrostabilization
Weight:
≤3500g
Heading:
NX360°
Pitch:
-70°~+20°
Angular Position Accuracy:
≤0.5°
Dimensions:
Ø160×250mm
Operating Temperature:
-20℃~+55℃
Power:
≤50W
Type:
Gyrostabilization
Weight:
≤3500g
Heading:
NX360°
Pitch:
-70°~+20°
Angular Position Accuracy:
≤0.5°
Dimensions:
Ø160×250mm
Operating Temperature:
-20℃~+55℃
Power:
≤50W
160×250mm Electro Optical Infrared Pod Weight ≤3500g Aerial Thermal Cameras

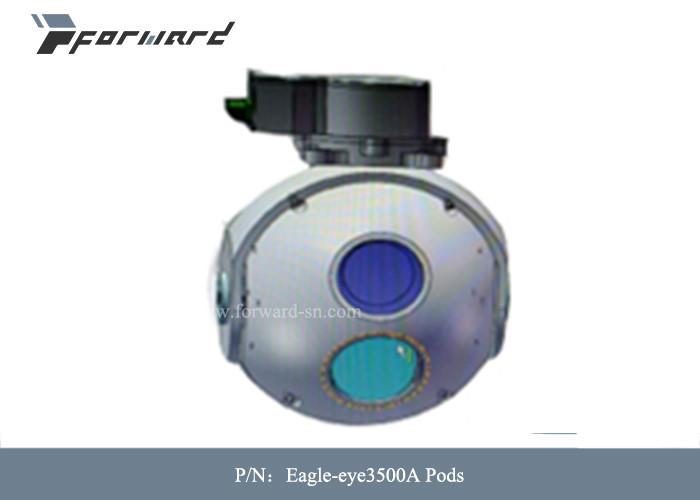

Electro Optical Pod Eagle-eye3500A Electro Optical Pod Weight ≤3500g



Descriptions of Electro Optical Pod:



Eagle-eye3500A photoelectric pod is an important part of aircraft such as manned aircraft, unmanned aerial vehicles, and airships. The photoelectric load is installed on a stable platform, and the vibration disturbance of the carrier aircraft is isolated through the gyro-stabilized platform to obtain a relatively stable platform space in the inertial space, and Driven by the control command, the photoelectric load can realize the search, capture, tracking and positioning of the target, which provides an important source of information for further strikes. The company has designed different types of small pods according to needs to adapt to different application environments.



Features of Electro Optical Pod:

  • Integrated visible light and infrared imaging modules;
  • Multi-sensor intelligent linkage, complementary advantages, to meet the needs of multiple operations;
  • High-definition infrared thermal imaging, breaking through visual limitations, no matter day or night;
  • Intelligent tracking, precise reshooting, ultra-clear images, and diversified functions.



Specifications of Electro Optical Pod:


Specification

Type: Gyro Stabilized

Weight: ≤3500g

Dimensions: Ø160×250mm

Detection distance People:≥1500m
Vehicle:≥5000m
Features

Stable accuracy:≤0.5mrad

Search range: Azimuth: N×360°;

Elevation: -70°~+20°

Angular velocity: ≥30°/s2

angular acceleration:≥20°/s2

Load

Visible light zoom camera:

focal length:10mm~90mm;

Infrared camera:

Resolution: 640×480,

focal length:50mm

Power power consumption: ≤50W Track Capable of automatic video tracking







160×250mm Electro Optical Infrared Pod  Weight ≤3500g Aerial Thermal Cameras 0
