Weight ≤1500g Electro Optical Pod Uav Pod 150mm X 200mm

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: Eagle-eye1500 Electro Optical Pod

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiatable

Packaging Details: boxes

Delivery Time: 5-8 weeks

Payment Terms: L/C, T/T

Supply Ability: 500 pcs/years

Get Best Price
Highlight:

1500g Electro Optical Pod

,

1.5kg Electro Optical Pod

,

uav pod 150mmx200mm

Type:
Gyrostabilization
Weight:
≤1500g
Heading:
NX360°
Pitch:
-90°~30°
Angular Position Accuracy:
≤0.05°
Dimensions:
≤Φ150mmx200mm
Operating Temperature:
-20℃~+55℃
Laser Ranging:
30~2000m
Type:
Gyrostabilization
Weight:
≤1500g
Heading:
NX360°
Pitch:
-90°~30°
Angular Position Accuracy:
≤0.05°
Dimensions:
≤Φ150mmx200mm
Operating Temperature:
-20℃~+55℃
Laser Ranging:
30~2000m
Weight ≤1500g Electro Optical Pod Uav Pod 150mm X 200mm

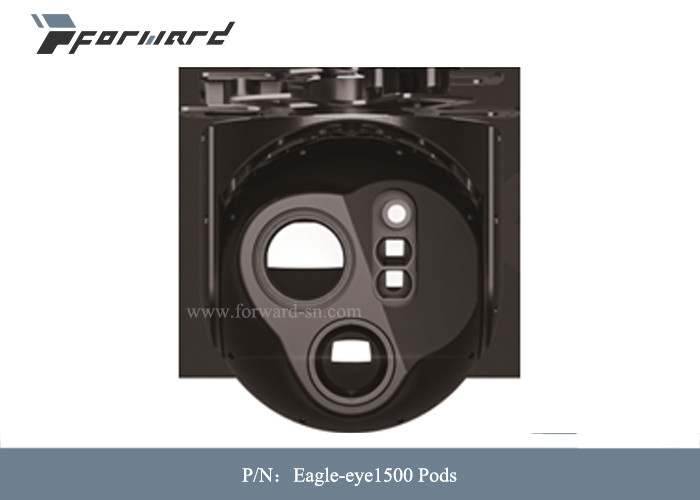

                      Electro Optical Pod Eagle-eye1500 Electro Optical Pod Weight ≤1500g

Descriptions of Electro Optical  Pod:



The Eagle-eye1500 electro pod is stabilized by two axes and has a laser ranging function. It is also equipped with visible light and infrared thermal imaging lenses. The visible light lens includes two types of zoom and fixed focus lenses, which are suitable for drone battlefield aerial photography and reconnaissance. It adopts an integrated structure design and is easy to install. Can find and track targets (people, cars, planes and other custom targets) day and night. Applicable to vehicles such as drones, unmanned vehicles, unmanned ships and robot dogs on the battlefield, used to scout the battlefield environment (enemy equipment configuration, troop deployment, core personnel location, etc.), and then make corresponding decisions and take actions .







Speifications of Electro Optical Pod:


Specification

Type: Gyro Stabilized

Weight: ≤1.5kg

Dimensions: ≤Φ150mmx200mm

Zoom Visible Light Imaging


Lens type 4.7mm-140mm

pitch +20°~-110°

Resolution 1080p

Aperture F1.5-4.0

Detection distance 8000 meters

AI recognition distance 1500 meters

Features

Two axes (pitch axis: -90°~30°;

Heading axis: NX360°;

Stable accuracy: 0.05°

With 3-way video AI recognition, arbitrary target tracking and other AI functions

Fixed Focus Visible Light Imaging

Lens Type 12mm

Resolution 1080p

Aperture F2.0

Detection distance 800 meters

Al recognition distance 200 meters

Laser Ranging 30~2000m
Infrared Thermal Imaging

Lens Type 35mm

Array size 640x512

Aperture F1.0

Detection distance 1100 meters

AI recognition distance 300 meters

Environmental conditions

Working temperature -20℃~+55℃

Storage temperature - 40℃~+65℃




















































Features of Electro Optical Pod:



  • Easy to operate, support sliding zoom, touch screen control;
  • Convenient disassembly design, support quick installation and replacement;
  • ±0.05° control accuracy, high-precision and precise strike;
  • Equipped with fixed and zoom dual lenses, with infrared thermal imaging, laser ranging and other functions, suitable for aerial photography and reconnaissance in complex battlefield environments;
  • Intelligent AI recognition, supports simultaneous recognition of multiple targets on the same screen, including targets such as people, cars, and airplanes (other targets can be customized);
  • Support arbitrary target tracking, use REID technology to achieve cross-mirror tracking, and re-lock the target after a short occlusion;
  • Support any type of target for single template matching;
  • Open protocol, easy for third-party client integration.Weight ≤1500g Electro Optical Pod Uav Pod 150mm X 200mm 0
