Home > products > Electric Brushless DC Motor > 8318 44.4V Electric Brushless DC Motor 3 Phase Brushless Dc Motor for drone 3671RPM/Min

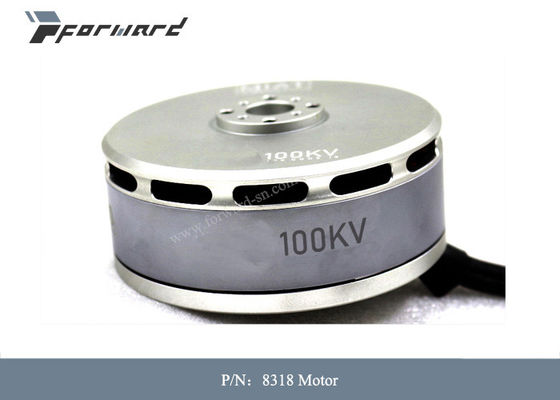

8318 44.4V Electric Brushless DC Motor 3 Phase Brushless Dc Motor for drone 3671RPM/Min

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: 8318 Electric Brushless DC Motor for drone

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Get Best Price
Highlight:

8318 Electric Brushless DC Motor

,

44.4V Electric Brushless DC Motor

,

3 phase brushless dc motor 3671RPM/Min

Prop:
32 Inch
Volte:
44.4 V
Throttle:
100%
Amps:
69.8 A
Thrust:
16000 G
RPM:
3671 RPM/Min
Watte:
3099.12 W
Efficiency:
5.2 G/w
Environment Temperature:
35 ℃
Test Temperature:
40 ℃
Prop:
32 Inch
Volte:
44.4 V
Throttle:
100%
Amps:
69.8 A
Thrust:
16000 G
RPM:
3671 RPM/Min
Watte:
3099.12 W
Efficiency:
5.2 G/w
Environment Temperature:
35 ℃
Test Temperature:
40 ℃
8318 44.4V Electric Brushless DC Motor 3 Phase Brushless Dc Motor for drone 3671RPM/Min

8318 Electric Brushless DC Motor for Prop Volte 44.4 V



Descriptions of Electric Brushless DC Motor for drone:

  • Suction cooling mode, extremely low temperature, high efficiency to ensure long working time.
  • High standard strong magnetic for long-term work force does not decay.
  • 99.99% Oxygen-free copper wires assure the high efficiency and quality.
  • CNC processing technique, 100% dynamic balance adjustment before leaving factory
  • Brand new EZO bearings, anti noise and more durable.

Features of Electric Brushless DC Motor for drone:

  • 14Pole 12Slot Hi-torque Motor Design
  • CNC Machined 6061 T6 Billet Aluminum Heatsink Can
  • High Purity Copper Windings Maximizes Efficiency
  • High RPM ABEC5 Oversized Bearings
  • Precision balanced rotor,smoothness for best reliability and maximum RPM. single copper wire made
  • Stator - Super Thin (0.2mm) Laminations

Specifications of Electric Brushless DC Motor for drone:



Prop(inch) 32
Volte(V) 44.4
Throttle 40% 70% 100%
Amps(A) 6.4 28.4 69.8
Thrust(g) 3330 9815 16000
RPM(RPM/Min) 1754 2850 3671
Watte(W) 284 1260.96 3099.12
Efficiency(g/w) 11.7 7.1 5.2
Environment Temperature(℃) 35
Test Temperature(℃) 40
