Home > products > Electric Brushless DC Motor > FW-M40-KV10000 Electric Brushless DC Motor Brushless Direct Current 4.4A 40V for Drone

FW-M40-KV10000 Electric Brushless DC Motor Brushless Direct Current 4.4A 40V for Drone

Product Details

Place of Origin: China

Brand Name: Forward

Model Number: FW-M40-KV10000

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: boxes

Get Best Price
Highlight:

FW-M40-KV10000 Electric Brushless DC Motor

,

Electric Brushless DC Motor 4.4A

,

brushless direct current motor 40V

No-load Current:
4.4A/40V
Motor Weight:
3460g
Maximum Current:
41.6A
Maximum Torque:
47.4 Nm
Maximum Power:
16532W
Maximum Thrust:
73kg
No-load Current:
4.4A/40V
Motor Weight:
3460g
Maximum Current:
41.6A
Maximum Torque:
47.4 Nm
Maximum Power:
16532W
Maximum Thrust:
73kg
FW-M40-KV10000 Electric Brushless DC Motor Brushless Direct Current 4.4A 40V for Drone

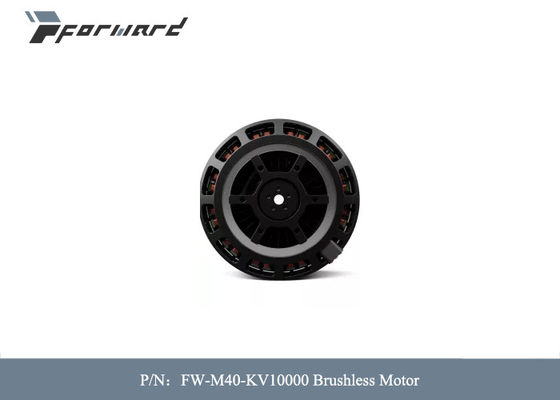

FW-M40-KV10000 Brushless Motor for Drone

Electric Brushless DC Motor FW-M40-KV10000 Brushless Motor for Drone

Description of Electric Brushless DC Motor for Drone:

       FW-M40-KV10000 is positioned on a single shaft with a load of 20~35kg. It is used with a 47.5-54 inch carbon propeller. The maximum pulling force of a single shaft is 80kg, and the weight of a single motor is 3460g.The weight of the Motor is only 12.7kg, which is suitable for professional drones such as high-end aerial photography, exploration, archaeology, agricultural plant protection, and remote sensing mapping. IP35 dustproof and waterproof protection, using extremely durable bearings, more stable rotation, more drop-resistant, unique mechanism design provides you with better security



Feature of Electric Brushless DC Motor for Drone:

  • Designed for professional aerial photography, surveying, mapping, exploration and other long flight time, 24S voltage
  • Maximum hollow design, ultra-light weight, fast heat dissipation
  • Unique motor core design
  • Using 7075-T6 aviation aluminum, the strength is higher, providing you with better safety assurance
  • Through the simulation of magnetic flux density and magnetic inclusion, the motor has low energy consumption and high efficiency
  • Using durable and high-quality EZO imported bearings, the rotation is more stable and more resistant to falling
  • Using high-performance high-temperature-resistant arc-shaped magnets, the performance is improved by 5%



Specifications of Electric Brushless DC Motor for Drone:

Item Parameters
KV value 10000KV
No-load current 4.4A/40V
Motor weight 3460g
Maximum current 41.6A
Maximum thrust 73kg
Support lithium battery 100S
Resistance 20.3mΩ
Maximum torque 47.4 Nm


FW-M40-KV10000 Electric Brushless DC Motor Brushless Direct Current 4.4A 40V  for Drone 0
