Product Details:
Place of Origin: China
Brand Name: Forward
Model Number: GT30B
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: boxes
Delivery Time: 5-8 weeks
Payment Terms: L/C, T/T
Supply Ability: 500 pcs/years
Contact Now
Detailed Product Description
Type: Gyrostabilization Weight: ≤960g
Platform Type: Triaxial Heading: N×360°
Pitch: -110°~+110° Roll: -50°~+50°
Maximum Angular: ≥100°/ S Maximum Angular Acceleration: ≥90°/ S2
Angular Position Accuracy: ≤0.3° Operating Temperature: -20℃~+60℃
Highlight:

100°/ S Electro Optical Pod

,

triaxial Electro Optical Pod

,

gimbal thermal camera 100°/ s

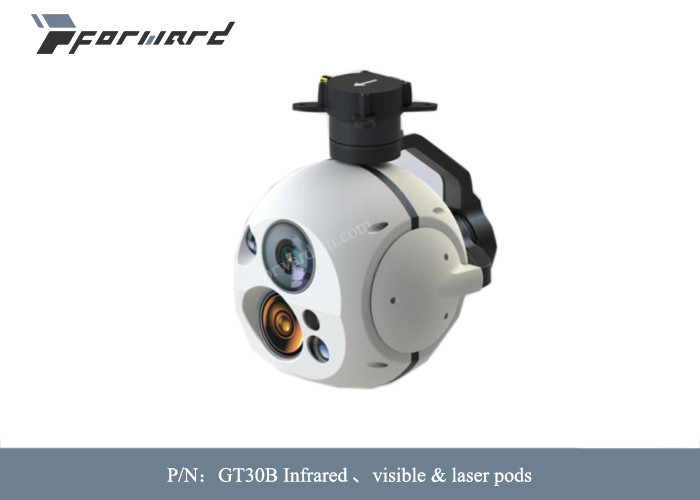

Electro Optical Pod GT30B Infrared, Visible & Laser Pods Maximum Angular ≥100°/ s



Descriptions of  Electro Optical Pod:

  • Multi-sensor intelligent linkage, complementary advantages, to meet the needs of multiple operations
  • Visible light fixed focus and zoom complement each other, and the overall situation and details can be seen
  • High-definition infrared thermal imaging, breaking through visual limitations, no matter day or night
  • High-precision laser ranging, target positioning, unparalleled
  • Intelligent tracking, precise reshooting, ultra-clear images, and diversified functions



Features of Electro Optical Pod:

  • small and light
  • Hight accuracy
  • Good acclimatization
  • High reliability



Applications of Electro Optical Pod:

  • Optical sight equipments
  • Optoelectronic system
  • UAV



Specifications of Electro Optical Pod:



Parameter GT30B
Description Type gyrostabilization
Weight ≤960g
Feature Platform type triaxial
Heading n×360°zui
Pitch -110°~+110°
Roll -50°~+50°
Maximum Angular ≥100°/ s
Maximum Angular Acceleration ≥90°/ s2
Angular Position Accuracy ≤0.3°
Visible Light Resolution 30x zoom imaging 1920×1080 @60fps
Fixed focus imaging
Field Angle 30x zoom imaging 63°×35°~2.3°×1.3°
Fixed focus imaging 38.4°×22.2°(8mm)
Infrared Resolution 640×512@60fps
Field Angle(Focus) 12°×9°(35mm)
Tracking Module Tracking Velocity ±48 Pixel/frame @60fps
Laser Ranging Measuring Range ≥3km
Accuracy ±2m
Interface Control Interface RS232
TV-out network /SDI
Power Supply Voltage 11~16V
Power average≤10W ,Max≤16W
Environmental Operating Temperature -20℃~+60℃
Storage Temperature -40℃~+60℃





Gimbal Thermal Camera Electro Optical Pod Visible Laser Pods 100°/ S 0
