FWD-5.3 5.3mm F1.2 384×288@12μm LWIR Motorized Zoom Lens with 8-12 μm Wavelength for Thermal Imaging

  • FWD-5.3 5.3mm F1.2 384×288@12μm LWIR Motorized Zoom Lens with 8-12 μm Wavelength for Thermal Imaging
Place of Origin China
Brand Name Forward
Model Number FWD-5.3
Minimum Order Quantity 1
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 10000/year
Product Details
Highlight

5.3mm F1.2 thermal imaging lens

,

motorized zoom lens for thermal imaging

,

LWIR lens with 8-12 μm wavelength
Leave a Message
Product Description
FWD-5.3 5.3mm F1.2 384×288@12μm LWIR Motorized Zoom Lens with 8-12 μm Wavelength for Thermal Imaging
Product Overview

FWD-5.3 5.3mm F1.2 384×288@12μm LWIR Motorized Zoom Lens — Chalcogenide Series. This innovative Chalcogenide glass lens series serves as an advanced alternative to traditional Germanium lenses, operating within the 8-12 μm wavelength band. Featuring a motorized athermalized design, it ensures stable and precise focusing across extreme temperatures from -40°C to +80°C.

Key Applications

Ideal for thermal imaging cameras, optical sights, and high-end security surveillance systems requiring reliable performance in demanding environments.

Key Parameters
  • Operating Wavelength: 8-12 μm (Long-Wave Infrared)
  • Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
  • Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
Parameter Value
EFL 5.3mm
Sensor 384×288/12μm
FNo 1.2
FOV(D×H×V) 50.1°×37.3°
Wavelength 8-12μm
Transmittance >95%
Focus Manual
Focus distance 0.2m~∞
Sealing IP67
Operation Temperature -40~80℃
Weight ＜5.1g

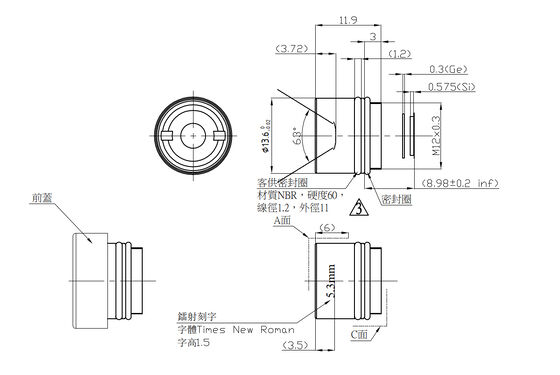

Product Image
FWD-5.3 5.3mm F1.2 384×288@12μm LWIR Motorized Zoom Lens with 8-12 μm Wavelength for Thermal Imaging 0
