FWD-7 7mm F1.0 256×192@12μm LWIR Motorized Zoom Lens with 8-12 μm Wavelength for Thermal Imaging
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FWD-7 |
| Minimum Order Quantity | 1 |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 10000/year |
Product Details
| Highlight | 7mm F1.0 LWIR motorized zoom lens,thermal imaging lens 8-12 μm wavelength,256×192 thermal imaging monocular lens |
||
|---|---|---|---|
Product Description
FWD-7 7mm F1.0 256×192@12μm LWIR Motorized Zoom Lens with 8-12 μm Wavelength for Thermal Imaging
Product Overview
FWD-7 7mm F1.0 256×192@12μm LWIR Motorized Zoom Lens — Chalcogenide Series. This innovative Chalcogenide glass lens series serves as an advanced alternative to traditional Germanium lenses, operating within the 8-12 μm wavelength band. Featuring a motorized athermalized design, it ensures stable and precise focusing across extreme temperatures from -40°C to +80°C.
Key Applications
Ideal for thermal imaging cameras, optical sights, and high-end security surveillance systems requiring reliable performance in demanding environments.
Key Parameters
- Operating Wavelength: 8-12 μm (Long-Wave Infrared)
- Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
- Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
| Parameter | Value |
|---|---|
| EFL | 7mm |
| Sensor | 256×192/12μm |
| FNo | 1.0 |
| FOV(D×H×V) | 24.8°×18.7° |
| Wavelength | 8-12μm |
| Transmittance | >92% |
| Focus | Fixed-type |
| Focus distance | 0.2m~∞ |
| Sealing | IP67 |
| Operation Temperature | -40~80℃ |
| CRA | 21.5° |
| Weight | 1.7g±0.5g |
| Number of lenses | 2 |

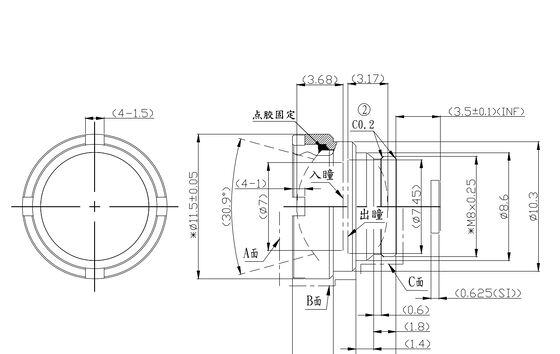

Product Image
