FWD-19-03 19mm F1.0 384×288@12μm LWIR Motorized Zoom Lens with 8-12 μm Wavelength — Chalcogenide Series

  • FWD-19-03 19mm F1.0 384×288@12μm LWIR Motorized Zoom Lens with 8-12 μm Wavelength — Chalcogenide Series
Place of Origin China
Brand Name Forward
Model Number FWD-19-03
Minimum Order Quantity 1
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 10000/year
Product Details
Highlight

19mm F1.0 thermal imaging lens

,

LWIR motorized zoom lens

,

chalcogenide thermal lens 8-12μm
Leave a Message
Product Description
FWD-19-03 19mm F1.0 384×288@12μm LWIR Motorized Zoom Lens — Chalcogenide Series
Product Overview

FWD-19-03 19mm F1.0 384×288@12μm LWIR Fixed-Focus Lens (Germanium-to-Chalcogenide Upgrade Series)

LWIR Motorized Zoom Lens — Chalcogenide Series

As an innovative alternative to traditional Germanium lenses, this Chalcogenide glass lens series operates within the 8-12 μm wavelength band. Featuring an advanced motorized athermalized design, it ensures stable and precise focusing across an extreme temperature range from -40°C to +80°C. This high-performance series is ideally suited for applications in thermal imaging, weapon sights, and security surveillance.

Key Parameters
  • Operating Wavelength: 8-12 μm (Long-Wave Infrared)
  • Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
  • Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
Parameter Value
EFL 19mm
Sensor 384×288/12μm
FNo 1.0
FOV(D×H×V) 17.5°×13.78°×10.36°
Wavelength 8-12μm
Transmittance >90%
Focus Manual focusing
Focus distance 0.5m~∞
Sealing IP67
Operation Temperature -40~80℃
Weight 14.8±0.5g

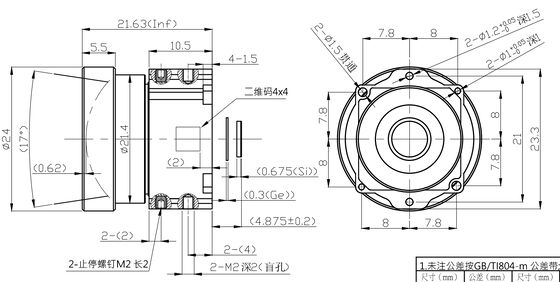

Product Image
FWD-19-03 19mm F1.0 LWIR Motorized Zoom Lens - Chalcogenide Series
