FWD-55 55mm F1.1 1280×1024@12μm LWIR Motorized Zoom Lens — Chalcogenide Series for Thermal Imaging

  • FWD-55 55mm F1.1 1280×1024@12μm LWIR Motorized Zoom Lens — Chalcogenide Series for Thermal Imaging
Place of Origin China
Brand Name Forward
Model Number FWD-55
Minimum Order Quantity 1
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 10000/year
Product Details
Highlight

55mm F1.1 thermal imaging lens

,

Chalcogenide motorized zoom lens

,

LWIR thermal imaging monocular
Leave a Message
Product Description
FWD-55 55mm F1.1 1280×1024@12μm LWIR Motorized Zoom Lens — Chalcogenide Series
Product Overview

FWD-55 55mm F1.0 1280×1024@12μm LWIR Fixed-Focus Lens (Germanium-to-Chalcogenide Upgrade Series)

LWIR Motorized Zoom Lens — Chalcogenide Series

As an innovative alternative to traditional Germanium lenses, this Chalcogenide glass lens series operates within the 8-12 μm wavelength band. Featuring an advanced motorized athermalized design, it ensures stable and precise focusing across an extreme temperature range from -40°C to +80°C. This high-performance series is ideally suited for applications in thermal imaging, weapon sights, and security surveillance.

Key Parameters
  • Operating Wavelength: 8-12μm (Long-Wave Infrared)
  • Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
  • Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
Parameter Value
EFL 55mm
Sensor 1280*1024/12μm
FNo 1.1
FOV(D*H*V) 20.11°*15.55°*12.49°
Wavelength 8-12μm
Transmittance ＞88%
Focus Manual focusing
Focus distance 5m~∞
Sealing IP67
Operation Temperature -40~80℃
Product Images

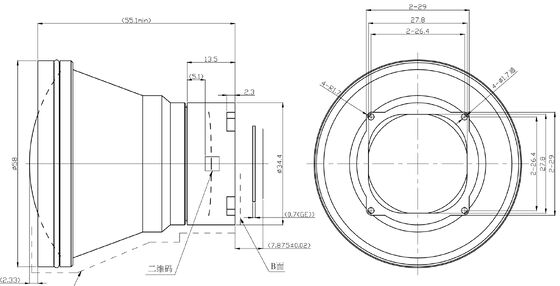

FWD-55 55mm F1.1 LWIR Motorized Zoom Lens - Chalcogenide Series product image
