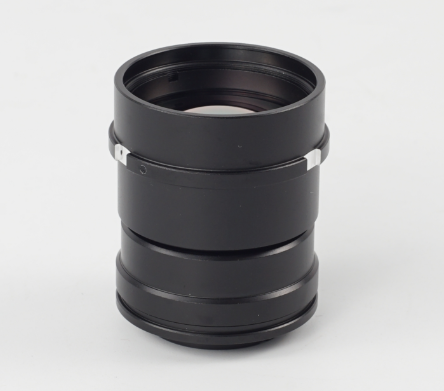

FWD-25 25mm F1.0 LWIR Motorized Zoom Lens with 8-12μm Wavelength and Athermalized Design in Chalcogenide Series
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FWD-25 |
| Minimum Order Quantity | 1 |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 10000/year |
Product Details
| Highlight | 25mm F1.0 LWIR motorized zoom lens,thermal imaging lens with athermalized design,chalcogenide series 8-12μm wavelength lens |
||
|---|---|---|---|
Product Description
FWD-25 25mm F1.0 384×288 LWIR Motorized Zoom Lens — Chalcogenide Series
Product Overview
FWD-25 25mm F1.0 384×288@12μm LWIR Fixed-Focus Lens (Germanium-to-Chalcogenide Upgrade Series)
LWIR Motorized Zoom Lens — Chalcogenide Series
As an innovative alternative to traditional Germanium lenses, this Chalcogenide glass lens series operates within the 8-12 μm wavelength band. Featuring an advanced motorized athermalized design, it ensures stable and precise focusing across an extreme temperature range from -40°C to +80°C. This high-performance series is ideally suited for applications in thermal imaging, weapon sights, and security surveillance.
Key Parameters
- Operating Wavelength: 8-12μm (Long-Wave Infrared)
- Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
- Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
| Parameter | Value |
|---|---|
| EFL | 25mm |
| Sensor | 384*288/12μm |
| FNo | 1.0 |
| FOV(D*H*V) | 13.12°*10.52°*7.9° |
| Wavelength | 8-12μm |
| Transmittance | ＞89% |
| Focus | Manual focusing |
| Focus distance | 3m~∞ |
| Sealing | IP67 |
| Operation Temperature | -40~80℃ |
| Weight | ＜52g |
