FWD-19-01 19mm LWIR Motorized Zoom Lens with 8-14μm Wavelength and -40°C to +80°C Operating Temperature for 256×192@12μm Thermal Imaging

  • FWD-19-01 19mm LWIR Motorized Zoom Lens with 8-14μm Wavelength and -40°C to +80°C Operating Temperature for 256×192@12μm Thermal Imaging
Place of Origin China
Brand Name Forward
Model Number FWD-19-01
Minimum Order Quantity 1
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 10000/year
Product Details
Highlight

19mm motorized zoom lens for thermal imaging

,

LWIR lens with 8-14μm wavelength

,

thermal imaging lens for -40°C to +80°C
Leave a Message
Product Description
FWD-19-01 19mm F0.96-1.5 256×192 LWIR Motorized Zoom Lens — Chalcogenide Series
Product Overview

FWD-19-01 19mm F1.0 256×192@12μm LWIR Fixed-Focus Lens (Germanium-to-Chalcogenide Upgrade Series)

LWIR Motorized Zoom Lens — Chalcogenide Series

As an innovative alternative to traditional Germanium lenses, this Chalcogenide glass lens series operates within the 8-14 μm wavelength band. Featuring an advanced motorized athermalized design, it ensures stable and precise focusing across an extreme temperature range from -40°C to +80°C. This high-performance series is ideally suited for applications in thermal imaging, weapon sights, and security surveillance.

Key Parameters
  • Operating Wavelength: 8-14μm (Long-Wave Infrared)
  • Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
  • Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
Parameter Value
EFL 19mm
Sensor 256*192/12μm
FNo 1.0
FOV(D*H*V) 9.22°*6.93°/4.8*2
Wavelength 8-14μm
Transmittance ＞90%
Focus Manual focusing
Focus distance 1m~∞
Sealing IP67
Operation Temperature -40~80℃
Weight ＜80g
Product Images

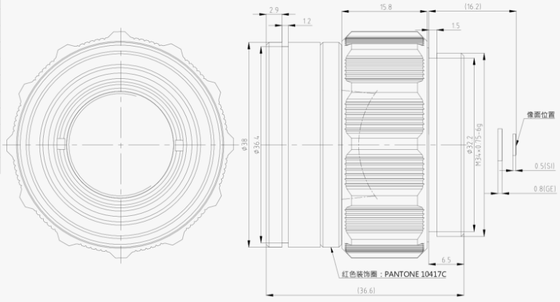

FWD-19-01 19mm LWIR Motorized Zoom Lens product image
