FWD-0326-0R 25-75mm EFL LWIR Motorized Zoom Lens with 8-12 μm Wavelength and Electric Focusing — Chalcogenide Series

  • FWD-0326-0R 25-75mm EFL LWIR Motorized Zoom Lens with 8-12 μm Wavelength and Electric Focusing — Chalcogenide Series
Place of Origin China
Brand Name Forward
Model Number FWD-0326-0R
Minimum Order Quantity 1
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 10000/year
Product Details
Highlight

thermal imaging zoom lens

,

motorized LWIR lens 8-12μm

,

chalcogenide electric focus lens
Leave a Message
Product Description
FWD-0326-0R 25-75mm F1-1.2 1280×1024@12μm LWIR Motorized Zoom Lens — Chalcogenide Series
Product Overview

FWD-0326-0R 25-75mm F1.0/1.2 1280×1024@12μm LWIR Fixed-Focus Lens (Germanium-to-Chalcogenide Upgrade Series)

LWIR Motorized Zoom Lens — Chalcogenide Series

As an innovative alternative to traditional Germanium lenses, this Chalcogenide glass lens series operates within the 8-12 μm wavelength band. Featuring an advanced motorized athermalized design, it ensures stable and precise focusing across an extreme temperature range from -40°C to +80°C. This high-performance series is ideally suited for applications in thermal imaging, weapon sights, and security surveillance.

Key Parameters
  • Operating Wavelength: 8-12 μm (Long-Wave Infrared)
  • Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
  • Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
Parameter Value
EFL 25-75mm
Sensor 1280*1024/12μm
FNo 1.0/1.2
FOV(D*H*V) 47.1°36.1°*28.6°(25mm)/14.8°*11.6°*9.3°(75mm)
Wavelength 8-12μm
Transmittance ＞84%
Focus Electric focusing
Focus distance 3m~∞(25mm)/10m~∞(75mm)
Sealing IP67
Operation Temperature -40~80℃
Weight ＜1200g

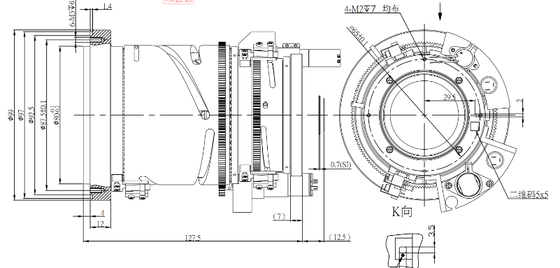

Product Image
FWD-0326-0R LWIR Motorized Zoom Lens - Chalcogenide Series
