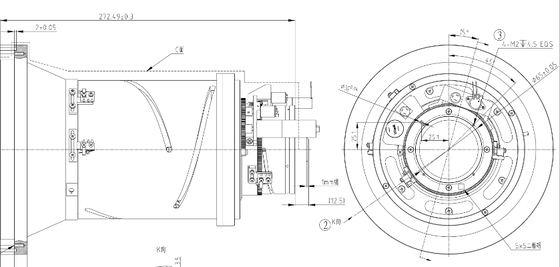

FWD-0325-0R 25-225mm F0.96-1.5 1280×1024@12μm LWIR Motorized Zoom Lens — Chalcogenide Series
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FWD-0325-0R |
| Minimum Order Quantity | 1 |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 10000/year |
Product Details
Product Description
FWD-0325-0R 25-225mm F0.96/1.5 1280×1024@12μm LWIR Fixed-Focus Lens (Germanium-to-Chalcogenide Upgrade Series)
Product Overview
LWIR Motorized Zoom Lens — Chalcogenide Series
As an innovative alternative to traditional Germanium lenses, this Chalcogenide glass lens series operates within the 8–12 μm wavelength band. Featuring an advanced motorized athermalized design, it ensures stable and precise focusing across an extreme temperature range from -40°C to +80°C. This high-performance series is ideally suited for applications in thermal imaging, weapon sights, and security surveillance.
Key Parameters
- Operating Wavelength: 8-12 μm (Long-Wave Infrared)
- Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
- Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
| Parameter | Value |
|---|---|
| EFL | 25-225mm |
| Sensor | 1280*1024/12μm |
| FNo | 0.96/1.5 |
| FOV(D*H*V) | 45.8°35.4°*28.2°/4.8°*3.8°*3.0° |
| /4.8*2Wavelength | 8-12μm |
| Transmittance | ＞85% |
| Focus | Continuous zoom |
| Focus distance | 3m~∞/20m~∞ |
| Sealing | IP67 |
| Operation Temperature | -40~80℃ |
| Weight | ＜4.6KG |
