FWD-0310-0R 50mm F1.0 640×512@12μm LWIR Fixed-Focus Lens with Germanium-to-Chalcogenide Upgrade for Thermal Imaging
| Place of Origin | China |
|---|---|
| Brand Name | Forward |
| Model Number | FWD-0310-0R |
| Minimum Order Quantity | 1 |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 10000/year |
Product Details
| Highlight | 50mm F1.0 thermal imaging lens,Germanium-to-chalcogenide LWIR lens,fixed-focus lens for thermal monocular |
||
|---|---|---|---|
Product Description

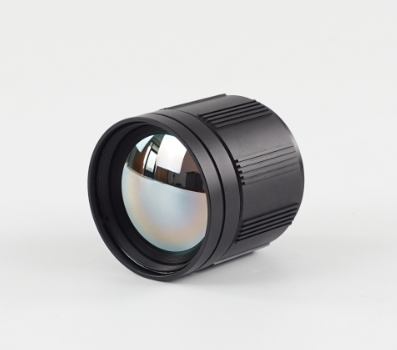

FWD-0310-0R 50mm F1.0 640×512@12μm LWIR Fixed-Focus Lens (Germanium-to-Chalcogenide Upgrade Series)
Product Overview
Long-Wave Infrared (LWIR) Fixed-Focal-Length Lens — Chalcogenide Series
As an innovative alternative to traditional Germanium lenses, this Chalcogenide glass lens series operates within the 8-12 μm wavelength band. Engineered for high reliability, it functions flawlessly across a wide temperature range from -40°C to +80°C. This series is ideally suited for applications in thermal imaging, weapon sights, and security surveillance.
Key Parameters
- Operating Wavelength: 8-12 μm (Long-Wave Infrared)
- Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
- Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
| Parameter | Value |
|---|---|
| EFL | 50mm |
| Sensor | 640*512/12μm |
| FNo | 1.0 |
| FOV(D*H*V) | 8.8°*7.0° |
| Wavelength | 8-12μm |
| Transmittance | ＞92% |
| Focus | Electric focusing |
| Focus distance | 5m~∞ |
| Sealing | IP67 |
| Operation Temperature | -40~80℃ |
| Weight | ＜210g |
