FWD-0308-0R 60mm F1.0 1280×1024@12μm LWIR Fixed-Focus Lens with Germanium-to-Chalcogenide Upgrade for Thermal Imaging

  • FWD-0308-0R 60mm F1.0 1280×1024@12μm LWIR Fixed-Focus Lens with Germanium-to-Chalcogenide Upgrade for Thermal Imaging
Place of Origin China
Brand Name Forward
Model Number FWD-0308-0R
Minimum Order Quantity 1
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 10000/year
Product Details
Highlight

60mm F1.0 thermal imaging lens

,

LWIR fixed-focus lens with Germanium upgrade

,

1280×1024 thermal monocular lens
Leave a Message
Product Description
FWD-0308-0R 60mm F1.0 1280×1024@12μm LWIR Fixed-Focus Lens (Germanium-to-Chalcogenide Upgrade Series)
Product Overview

Long-Wave Infrared (LWIR) Fixed-Focal-Length Lens — Chalcogenide Series

As an innovative alternative to traditional Germanium lenses, this Chalcogenide glass lens series operates within the 8-12 μm wavelength band. Engineered for high reliability, it functions flawlessly across a wide temperature range from -40°C to +80°C. This series is ideally suited for applications in thermal imaging, weapon sights, and security surveillance.

Key Parameters
  • Operating Wavelength: 8-12 μm (Long-Wave Infrared)
  • Operating Temperature: -40°C to +80°C (Ensuring stable performance in extreme environments)
  • Key Applications: Thermal imaging cameras, optical sights, and high-end security surveillance systems
Technical Specifications
Parameter Value
EFL 60mm
Sensor 1280*1024/12μm
FNo 1.0
FOV(D*H*V) 14.6°*11.68°
Wavelength 8-12μm
Transmittance ＞92%
Focus Electric focusing
Focus distance 6m~∞
Sealing IP67
Operation Temperature -40~80℃
Weight 460±15g
Product Images

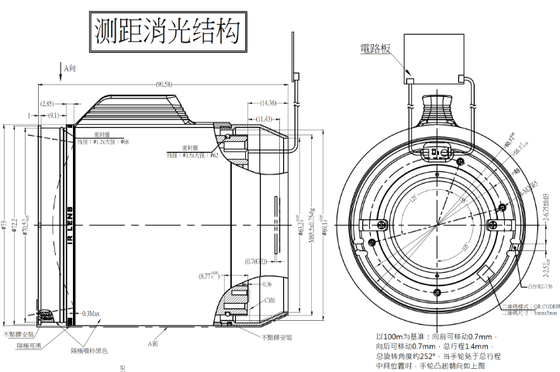

FWD-0308-0R 60mm F1.0 1280×1024@12μm LWIR Fixed-Focus Lens with Germanium-to-Chalcogenide Upgrade for Thermal Imaging 0FWD-0308-0R 60mm F1.0 1280×1024@12μm LWIR Fixed-Focus Lens with Germanium-to-Chalcogenide Upgrade for Thermal Imaging 1
