FW-S560 Thermal Imaging Monocular with 35mm Focal Distance 1024*768 OLED Display and IP67 Waterproof for 1000m Detection

  • FW-S560 Thermal Imaging Monocular with 35mm Focal Distance 1024*768 OLED Display and IP67 Waterproof for 1000m Detection
  • FW-S560 Thermal Imaging Monocular with 35mm Focal Distance 1024*768 OLED Display and IP67 Waterproof for 1000m Detection
Place of Origin China
Brand Name Forward
Model Number FW-S560
Minimum Order Quantity 1 set
Delivery Time 5-8 work days
Payment Terms L/C,T/T
Supply Ability 100 pcs/year

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Detection Type Vanadium Oxide Uncooled Focal Plane NETD ≤40mk@F1.0
Focal Distance 35mm Display 1024*768 OLED
Highlight

1024*768 Thermal Imaging Night Vision Device

,

35mm Thermal Imaging Night Vision Device
Leave a Message
Product Description

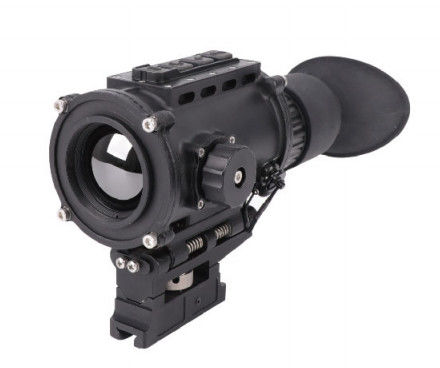

35mm Focal Distance FW-S560 Thermal Imaging Night Vision Device
Featuring 1024*768 OLED Display for high-resolution thermal imaging performance
Key Features
  • 384*288 Vanadium Oxide Uncooled Focal Plane detector
  • Crisp 1024*768 OLED display for clear thermal imaging
  • Compact and lightweight design for handheld operation
  • IP67 rated waterproof and dustproof construction
Technical Specifications
Detector Type Vanadium Oxide Uncooled Focal Plane
Resolution 384*288
Pixel spacing 17μm
NETD ≤40mk@25℃
Focal distance 35mm
FOV 10.7°*8.0°
Image mode White hot, black hot
Focus Manual focus
Display 0.6inch color OLED, resolution 1024*768
Electronic zoom *2, *4
MRTD ≤0.6℃
Protection level IP67
Battery operating time ≥3 hours
Working Temperature -40℃ to +60℃
Storage temperature -40℃ to +70℃
Weight ≤0.6kg
Size 210mm*100mm*115mm
Detection distance Person (1.8m*0.5m): 1000m
Vehicle (2.3m*2.3m): 1500m
Identification distance Person (1.8m*0.5m): 500m
Vehicle (2.3m*2.3m): 790m
FW-S560 Thermal Imaging Monocular with 35mm Focal Distance 1024*768 OLED Display and IP67 Waterproof for 1000m Detection 0
